CL2008 profile rail, slot 11 mm, unperforated
Type CL2008UP2000FS
|Item no. 1105124
|EAN 4012195039433
Item no. / Type
1105124 / CL2008UP2000FS
Length
2000 mm
Width
20 mm
Height
8 mm
Material thickness
0,75 mm
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 2 m
2m
m
Description
Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.
Unperforated, non-breakable.
Technical data

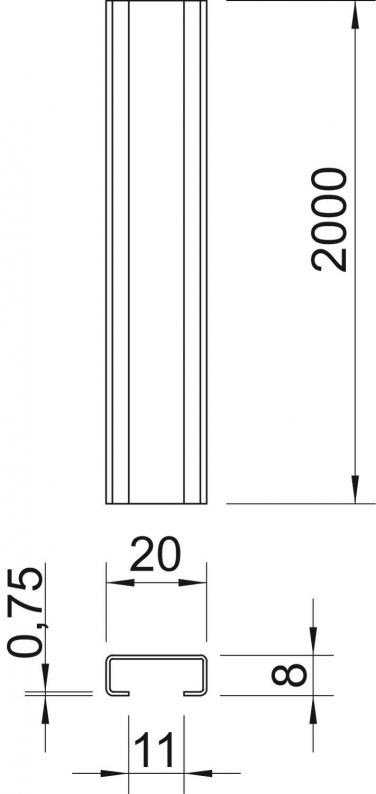

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 20 mm |
| Height | 8 mm |
| Dimension L | 2000 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Slot width | 11 mm |
| Material thickness | 0,75 mm |
| Static value A | 0,3 cm² |
| Static value ly | 0,03 cm⁴ |
| Static value lz | 0,17 cm⁴ |
| Static value Wy | 0,03 cm³ |
| Static value Wz | 0,17 cm³ |
| Profile shape | C profile |
| Type of perforation | Without |
| With perforation | no |
| Breakable | no |
| With toothing | no |
| Bundle | 50 m |
| Version for | Single profile |
| Dimension | 2000x20x8 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
0,5181 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5181 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
2056N 12 FT
1163124
Smallest selling unit: 100 piece
100piece
piece
Item no. 1163124
Clamp clip, single, plastic pressure trough, FTType
2056N 12 FT
Smallest selling unit: 100 piece
100piece
piece
