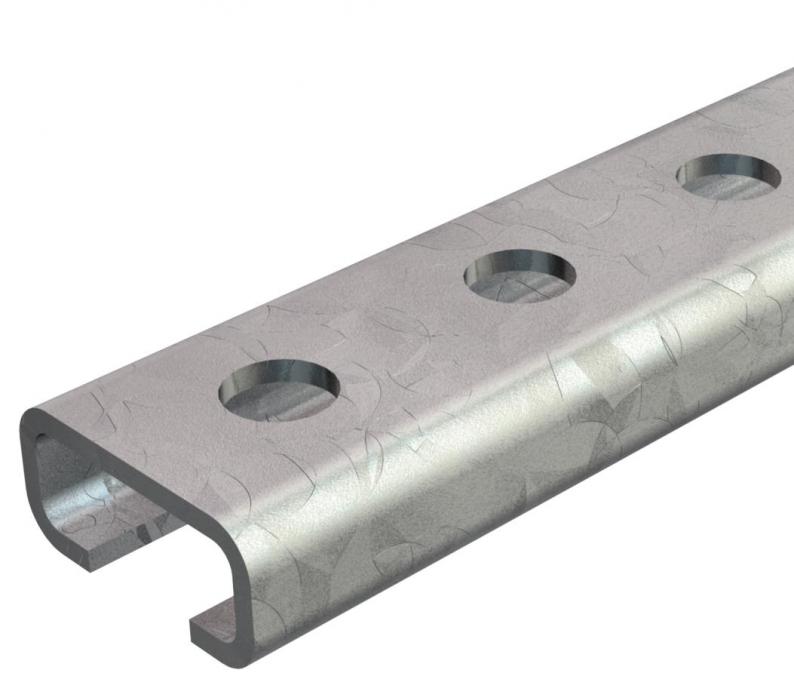

CL2712 profile rail, slot 12 mm, FS, perforated

CL2712 profile rail, slot 12 mm, FS, perforated

Type CL2712P2000FS
|
Item no. 1109525
|
EAN 4012196470693
Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Surface

Smallest selling unit: 2 m

m

Description

Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • CO₂ footprint (PCF)

Technical data

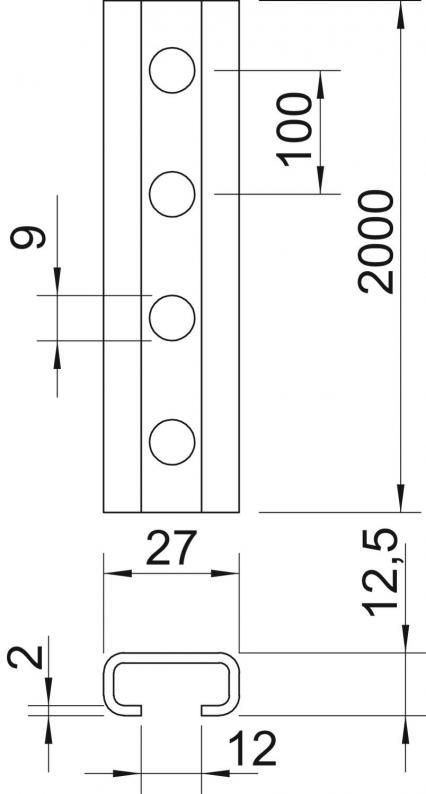

Dimensions

Length2000 mm
Width27 mm
Height12,5 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsno
Slot width12 mm
Material thickness2 mm
Static value A0,89 cm²
Static value ly0,17 cm⁴
Static value lz0,98 cm⁴
Static value Wy0,25 cm³
Static value Wz0,72 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre100 mm
With perforationyes
Breakableno
With toothingno
Bundle20 m
Version forSingle profile
Dimension2000x27x12,5
SurfaceStrip galvanized
MaterialSteel

Environmental Data

1,9634 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,9634 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 1147028

Slide nut
Type
CL27SN M6 ZL

Smallest selling unit: 100 piece

piece

Item no. 1148024

Hammer-head bolt
Type
CL27HB M6x25 ZL

Smallest selling unit: 50 piece

piece

Type
2056N 12 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Surface
CL2712P2000FS
Item no.
1109525
Length
2000
Width
27
Height
12,5
Material thickness
2
Surface
Strip galvanized
Material
Steel
CL2712P2000FT
Item no.
1109529
Length
2000
Width
27
Height
12,5
Material thickness
2
Surface
Hot-dip galvanised
Material
Steel
