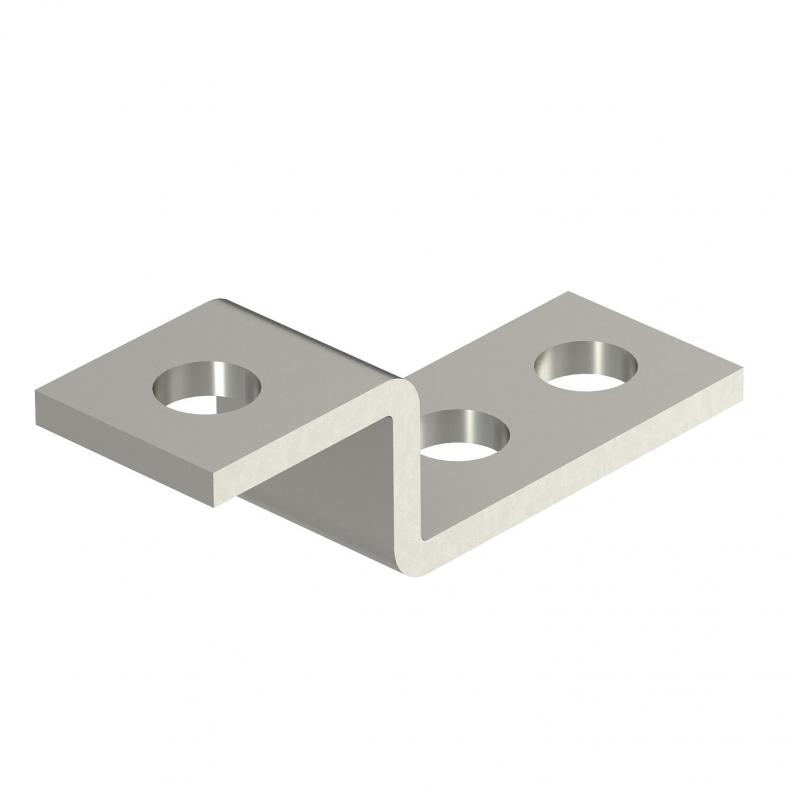

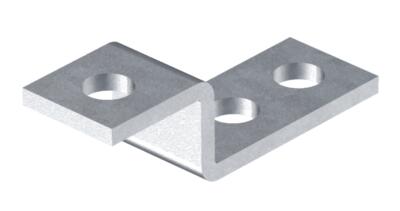

Connection and end piece
Type 5011
|Item no. 5304997
|EAN 4012195417071
Item no. / Type
5304997 / 5011
Dimension d min.
11 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• For attaching to steel structures or bolting to earthing fixed points
• For attachments: Round conductor Rd 8-10 and flat conductor FL30 x 3.5
• 2x attaching holes Ø 11 mm
• 1x attaching hole Ø D mm
• For attachments: Round conductor Rd 8-10 and flat conductor FL30 x 3.5
• 2x attaching holes Ø 11 mm
• 1x attaching hole Ø D mm
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Miscellaneous |
| Type of connector | End piece |
| Suitable for connection | Round conductor Rd 8-10 / flat conductor Fl 30 |

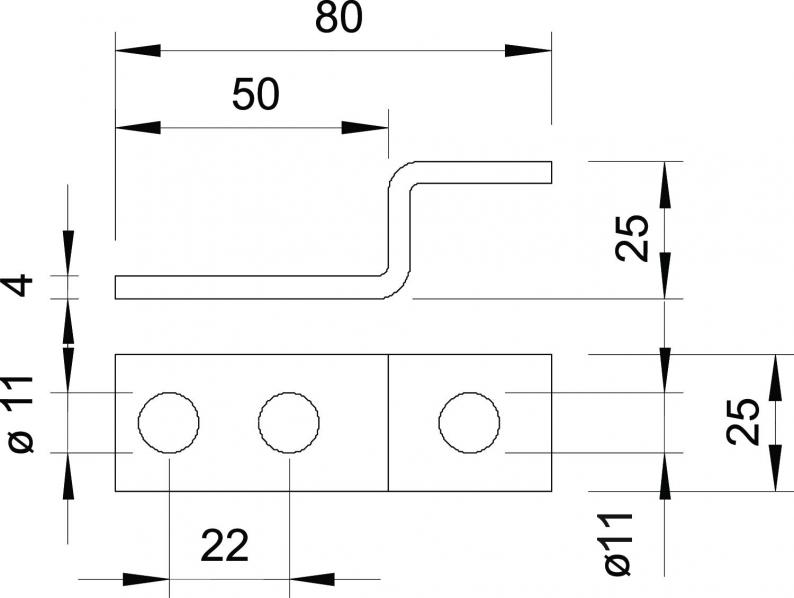

| Boyut | 80x25x25 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Dimensions
| Dimension d min. | 11 mm |
|---|
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1607 kg CO2e / 1 Piece |
|---|
