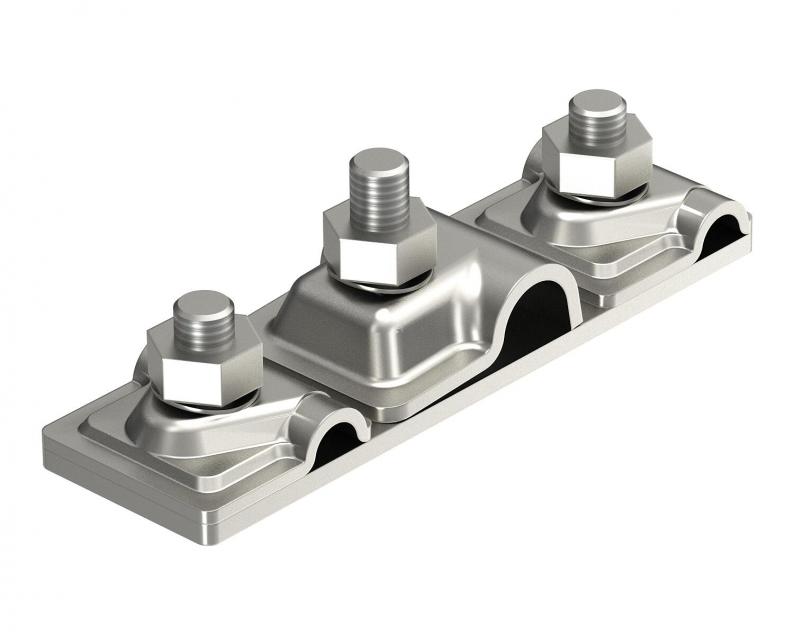

Connection plate for two isCon® conductors

Type isCon AP2-16 VA

Item no. 5408028

EAN 4012195674702

Item no. / Type

5408028 / isCon AP2-16 VA

Uyumluluk

Rd 8-10 x Rd 16 mm

Smallest selling unit: 1 piece

piece

Description

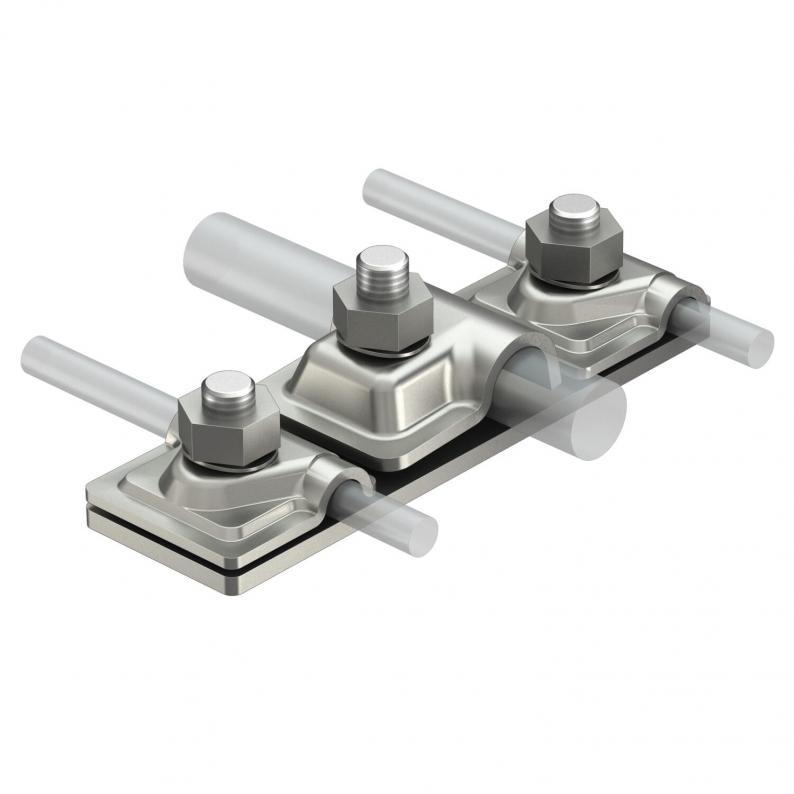

Connection plate to connect two isCon® conductors with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)

Connection	Round conductor
Lightning current carrying capacity	H1/150 kA
Uyumluluk	Rd 8-10 x Rd 16 mm
Boyut	16x8-10mm
Material	Stainless steel 1.4301

CO2 ayak izi (GWP) beşikten kapıya	2,5555 kg CO2e / 1 Piece

0 selected

Data sheet (1)

Catalogues & Flyers (3)

Declarations (3)

Certificates (1)

Instructions and Aid (1)

Product images (3)

3D data downloads (1)

Tender specifications (1)

isCon AP2-16 VA

Item no.

5408028

Uyumluluk

Rd 8-10 x Rd 16
