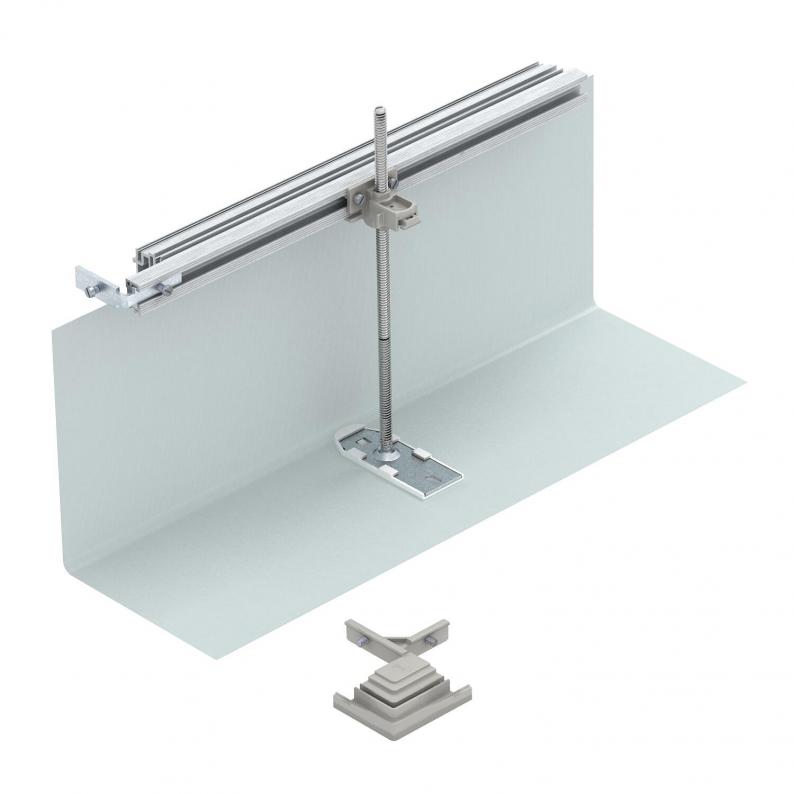

Construction set for 90° angle to left, height 40−240 mm

Construction set for 90° angle to left, height 40−240 mm

Type OKA-G20040240FBL
|
Item no. 7423960
|
EAN 4012195651345
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

For the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length260 mm
Width200 mm

Technical data

Height-adjustment range, min.0 mm
Height-adjustment range, max.200 mm
Minimum screed height40
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Installation opening for on-floor tankno
Seal installation optionno
Decouplableno
Floor plateno
With equipotential bondingno
Removable coverno
Cover fastening, lockingno
Mounting opening coverno
With separating retainerno
Suitable for expansion jointno
With overhangyes
FunctionBranch
With connection openingno
Suitable for flushfloor, open underfloor trunkingno
Duct height, min.40 mm
Trunking height, max.240 mm
SurfaceStrip galvanized
MaterialSteel

Environmental Data

4,5206 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate4,5206 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
OKA-G20040240FBL
Item no.
7423960
Width
200
OKA-G30040240FBL
Item no.
7423962
Width
300
OKA-G40040240FBL
Item no.
7423964
Width
400
OKA-G50040240FBL
Item no.
7423966
Width
500
OKA-G60040240FBL
Item no.
7423968
Width
600
