Corner connector
Type MKR EV FT
|Item no. 7060041
|EAN 4012196223756
Item no. / Type
7060041 / MKR EV FT
Height
15 mm
Smallest selling unit: 1 piece
1piece
piece
Description

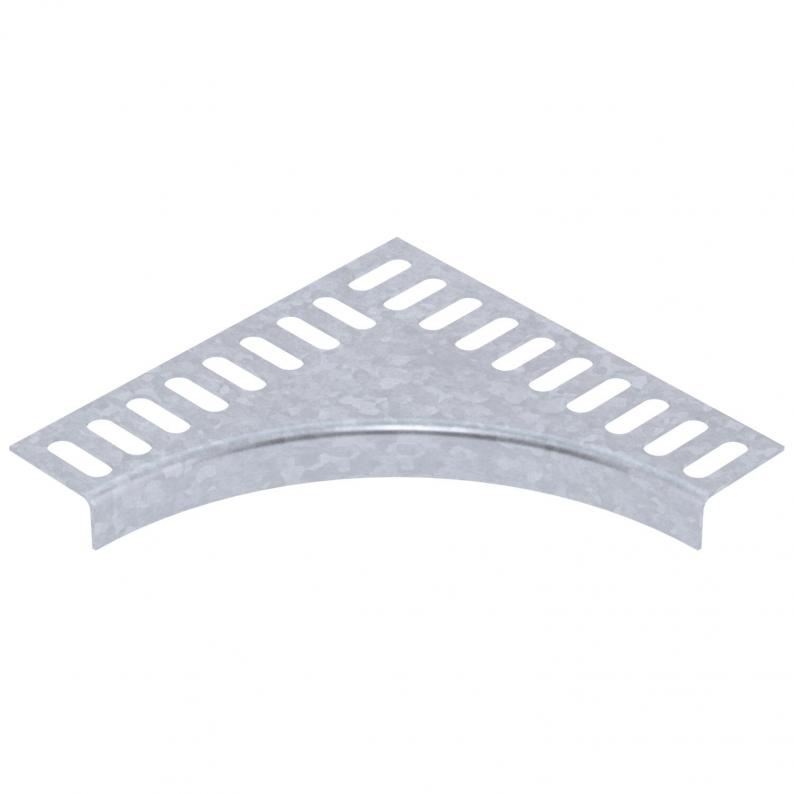

Corner connector for all cable trays according to the marine standard with side height of 15 mm.
Technical data

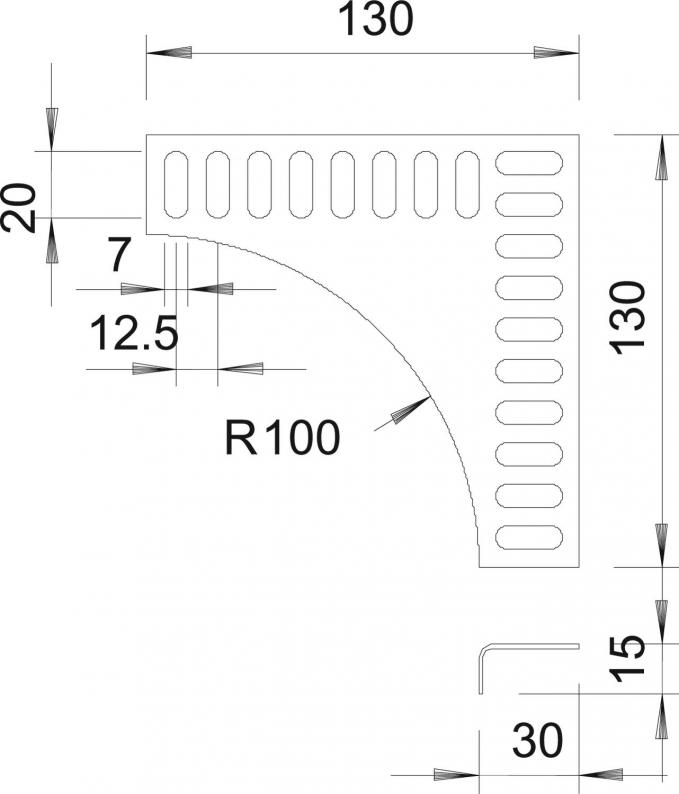

Dimensions
| Length | 130 mm |
|---|---|
| Width | 130 mm |
| Height | 15 mm |
Technical data
| Dimension | 130 x 130 |
|---|---|
| Suitable for cable tray system height | 15 mm |
| Version for | Corner connector |
| Dimension | 130x130 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,4542 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4542 kg CO2e / 1 Piece |
|---|
