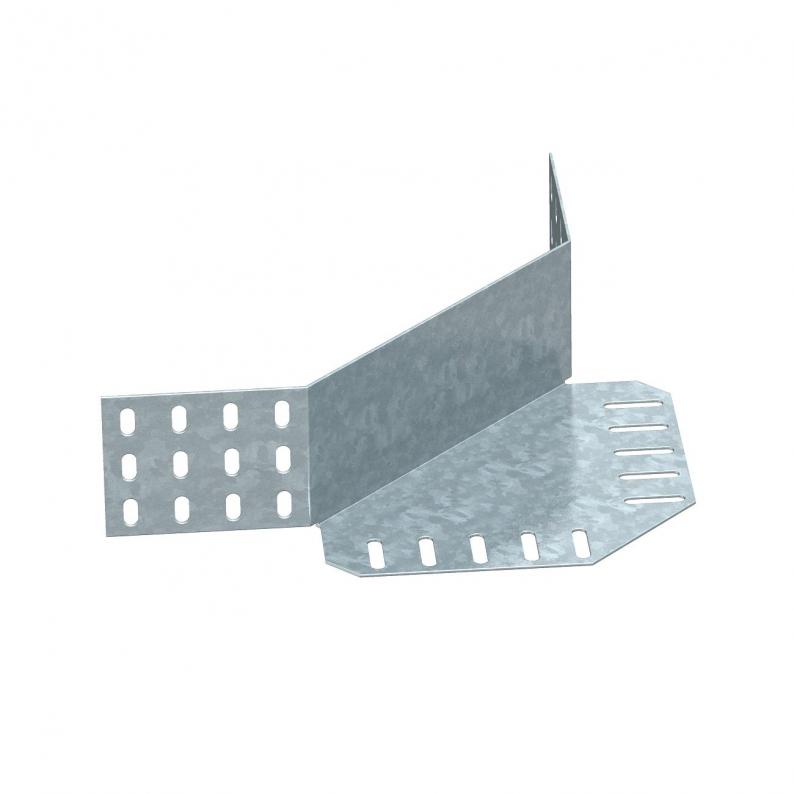

Corner connector DD
Type REV 85 DD
|Item no. 6069320
|EAN 4012196067756
Item no. / Type
6069320 / REV 85 DD
Height
85 mm
Plate thickness
1,25 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Corner connector for cable trays with side height 85 mm.
Fastening materials should be ordered separately.
Technical data

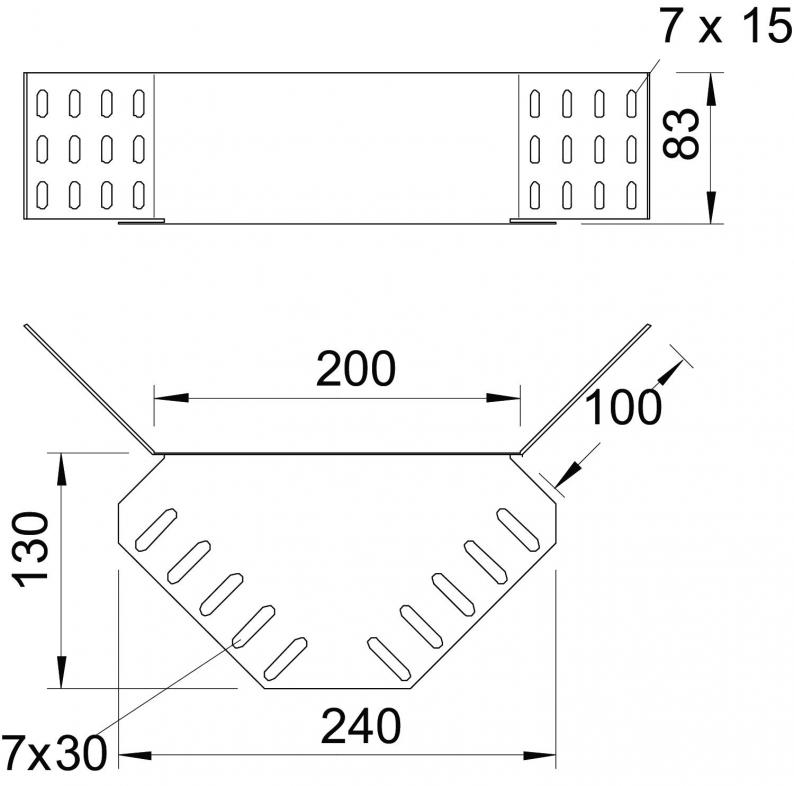

Dimensions
| Length | 240 mm |
|---|---|
| Width | 400 mm |
| Height | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 240 x 130 |
| Suitable for cable tray system height | 85 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Environmental Data
2,6128 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6128 kg CO2e / 1 Piece |
|---|
