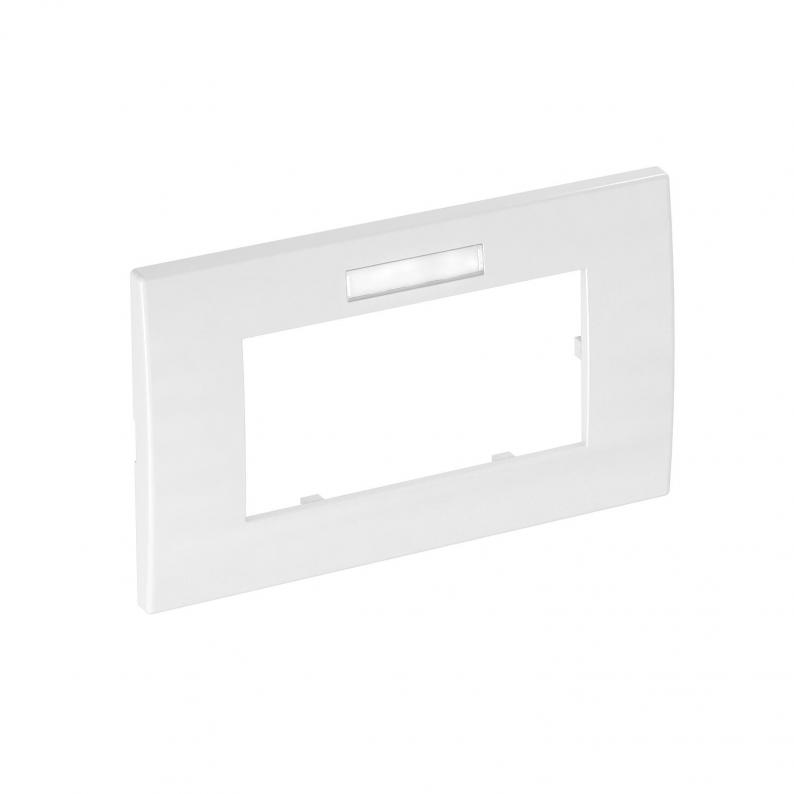

Cover frame AR45-BF2, for accessory mounting box 71GD13, double, with labelling panel for horizontal device installation

Cover frame AR45-BF2, for accessory mounting box 71GD13, double, with labelling panel for horizontal device installation

Type AR45-BF2 RW
|
Item no. 6119352
|
EAN 4012195888895
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Front locking cover frame for Modul 45 devices, double, with labelling panel for horizontal device installation, for locking in accessory mounting box 71GD13 or in mounting support 71MT2 45.
For installation in Rapid 80 device installation trunking and ISS service poles.

  • CO₂ footprint (PCF)

Technical data

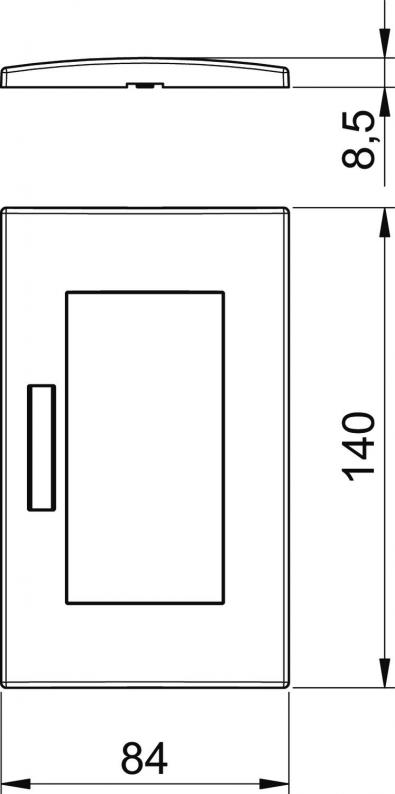

Dimensions

Width140 mm
Height84 mm

Technical data

Hinged coverno
Text field/inscription fieldyes
Halogen-freeyes
Number of units2
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsyes
Depth8,5 mm
Surface versionMatt
Mounting directionHorizontal
Einbaubreite90 mm
Installation height45 mm
Transparentno
Number of units, horizontal2
Anzahl der Einheiten vertikal0
Fastening typeClamp fastening
Dimension84x140mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Antibacterial treatmentno
With mounting frameno
Diameter opening0

Environmental Data

0,1752 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1752 kg CO2e / 1 Piece
