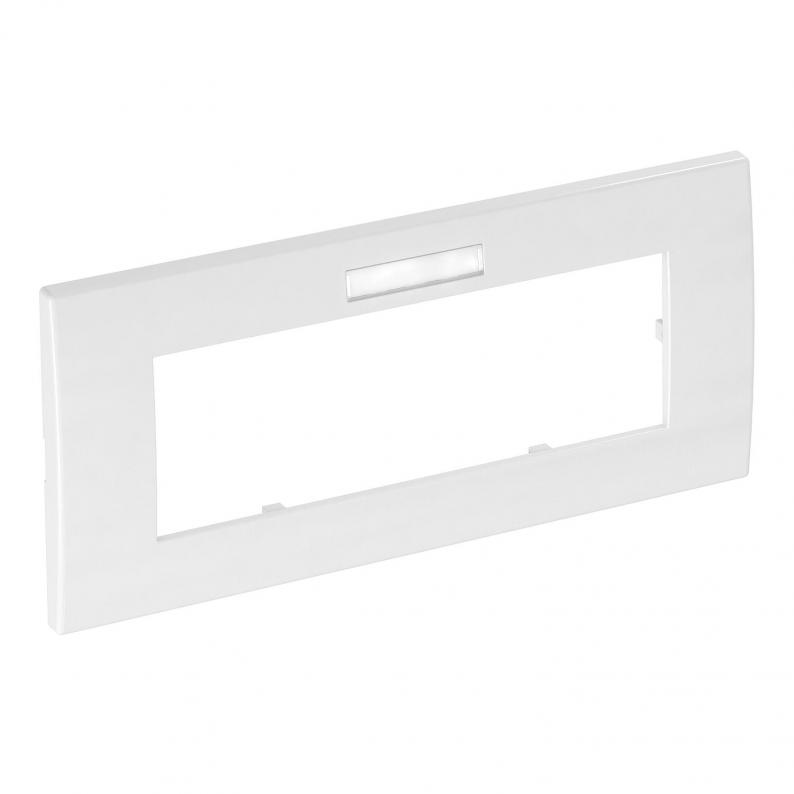

Cover frame AR45-BF3, for accessory mounting box 71GD9-2, triple, with labelling panel for horizontal device installation

Cover frame AR45-BF3, for accessory mounting box 71GD9-2, triple, with labelling panel for horizontal device installation

Type AR45-BF3 RW
|
Item no. 6119382
|
EAN 4012195889021
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Front locking cover frame for Modul 45 devices, triple, with labelling panel for horizontal device installation, for locking in accessory mounting box 71GD9-2 or in mounting support 71MT3 45-2.
For installation in Rapid 80 device installation trunking and ISS service poles.

  • CO₂ footprint (PCF)

Technical data

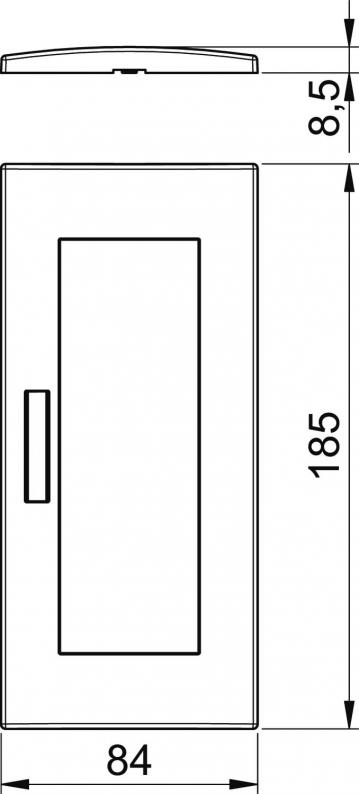

Dimensions

Width185 mm
Height84 mm

Technical data

Hinged coverno
Text field/inscription fieldyes
Halogen-freeyes
Number of units3
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsyes
Depth8,5 mm
Surface versionMatt
Mounting directionHorizontal
Einbaubreite135 mm
Installation height45 mm
Transparentno
Number of units, horizontal3
Anzahl der Einheiten vertikal0
Fastening typeClamp fastening
Dimension84x185mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Antibacterial treatmentno
With mounting frameno
Diameter opening0

Environmental Data

0,218 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,218 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

AR45-BF3 RW
Item no.
6119382
Ünite sayısı
3
Mounting direction
Horizontal
AR45-BF3 SWGR
Item no.
6119384
Ünite sayısı
3
Mounting direction
Horizontal
AR45-BF3 AL
Item no.
6119386
Ünite sayısı
3
Mounting direction
Horizontal
