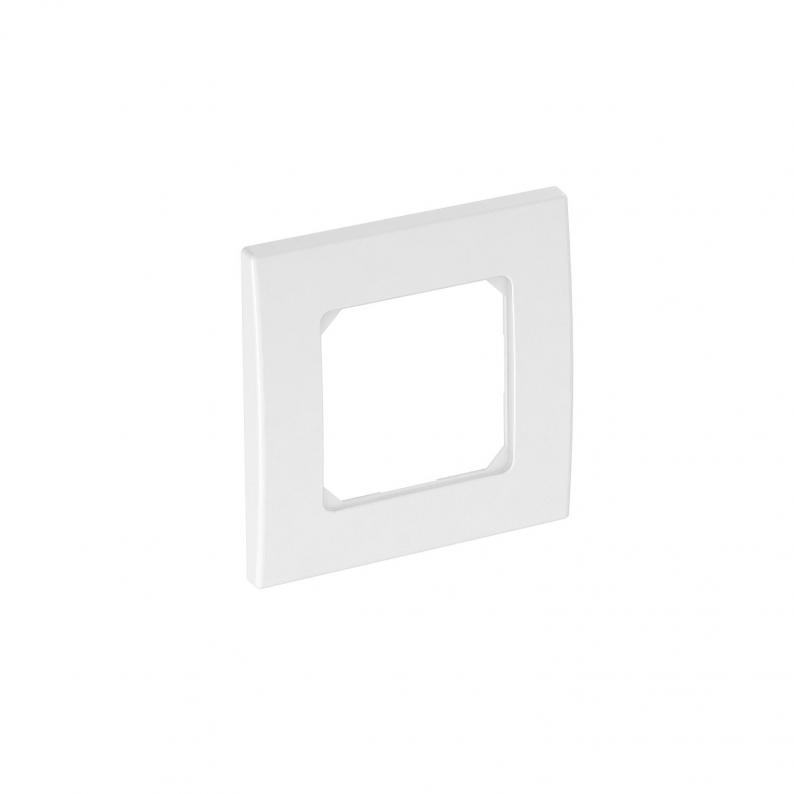

Cover frame AR50, for accessory mounting box 71GD6/11, single

Cover frame AR50, for accessory mounting box 71GD6/11, single

Type AR50-F1 RW
|
Item no. 6119392
|
EAN 4012195889052
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Front locking cover frame for devices with 50 mm central plate, single, without labelling panel for horizontal and vertical device installation, for mounting on accessory mounting box 71GD6, 71GD11 or in mounting support 71MTD.
For installation in Rapid 80 device installation trunking and ISS service poles.

  • CO₂ footprint (PCF)

Technical data

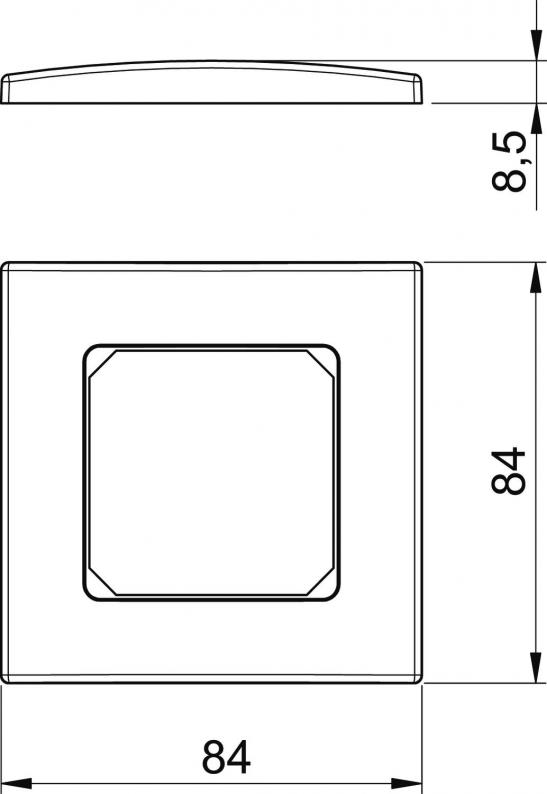

Dimensions

Width84 mm
Height84 mm

Technical data

Hinged coverno
Text field/inscription fieldno
Halogen-freeyes
Number of units1
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsyes
Depth8,5 mm
Surface versionMatt
Mounting directionHorizontal and vertical
Einbaubreite50 mm
Installation height50 mm
Transparentno
Number of units, horizontal1
Anzahl der Einheiten vertikal1
Fastening typeClamp fastening
Dimension84x84mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Antibacterial treatmentno
With mounting frameno
Diameter opening0

Environmental Data

0,1096 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1096 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

AR50-F1 RW
Item no.
6119392
Ünite sayısı
1
Mounting direction
Horizontal and vertical
AR50-F1 SWGR
Item no.
6119394
Number of units
1
Mounting direction
Horizontal and vertical
AR50-F1 AL
Item no.
6119396
Ünite sayısı
1
Mounting direction
Horizontal and vertical
