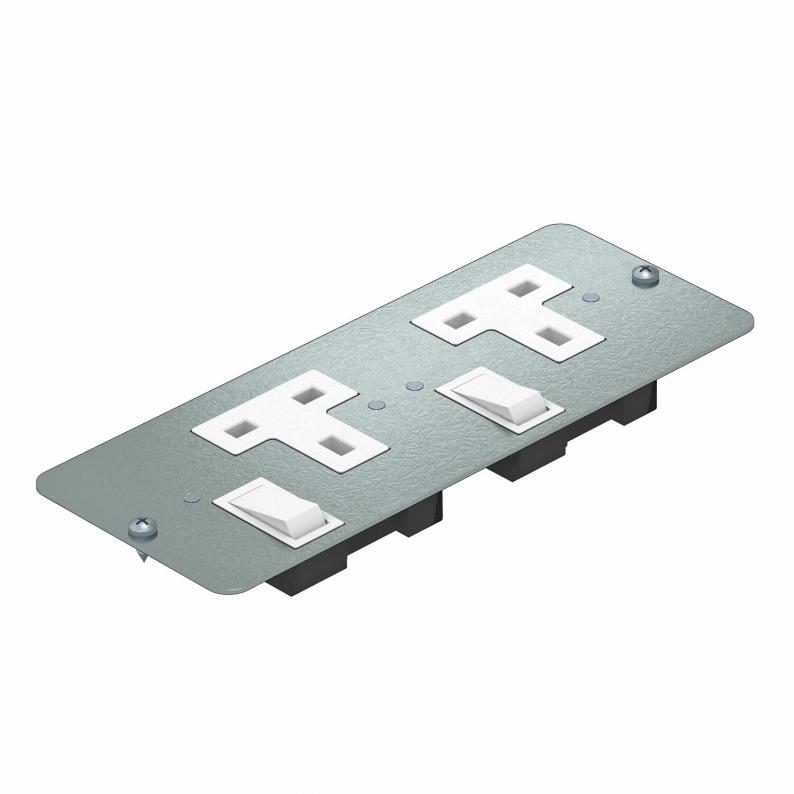

Cover plate APMT5 with two single sockets

Cover plate APMT5 with two single sockets

Type AP MT5 BS 2xSS0
|
Item no. 7407878
|
EAN 4012195817604
Show all variants
Item no. / Type
7407878 / AP MT5 BS 2xSS0

This item is a discontinued product!

Smallest selling unit: 4 piece

piece

Description

Cover plate with two switched single sockets for installation in mounting supports beneath GES service outlets and cassettes. Sockets with increased contact protection with screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.
  • CO₂ footprint (PCF)

Technical data

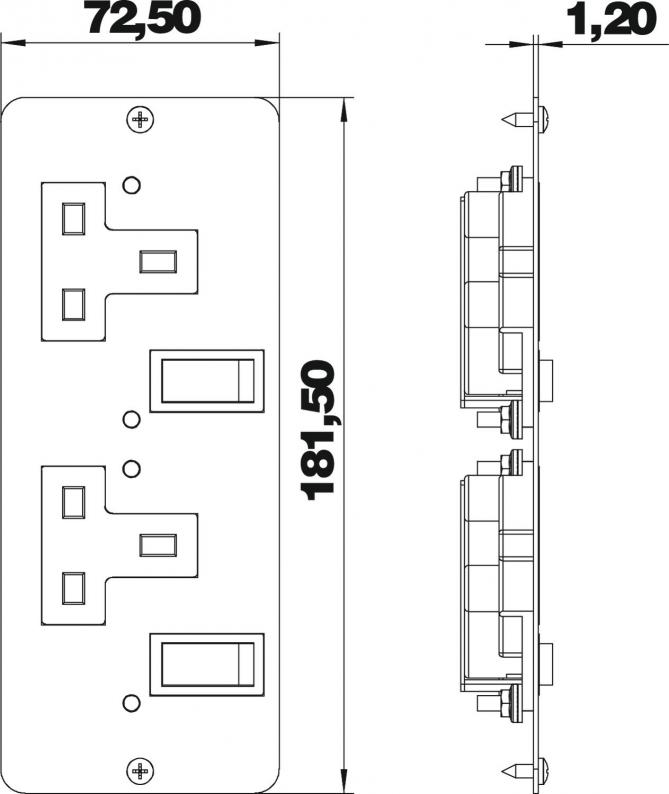

Dimensions

Length181,5 mm

Technical data

SurfaceStrip galvanised/organically coated
MaterialSteel
ColourGrey-white; RAL 9002

Environmental Data

0,4135 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,4135 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

AP MT5 BS 2xSS0
Item no.
7407878
