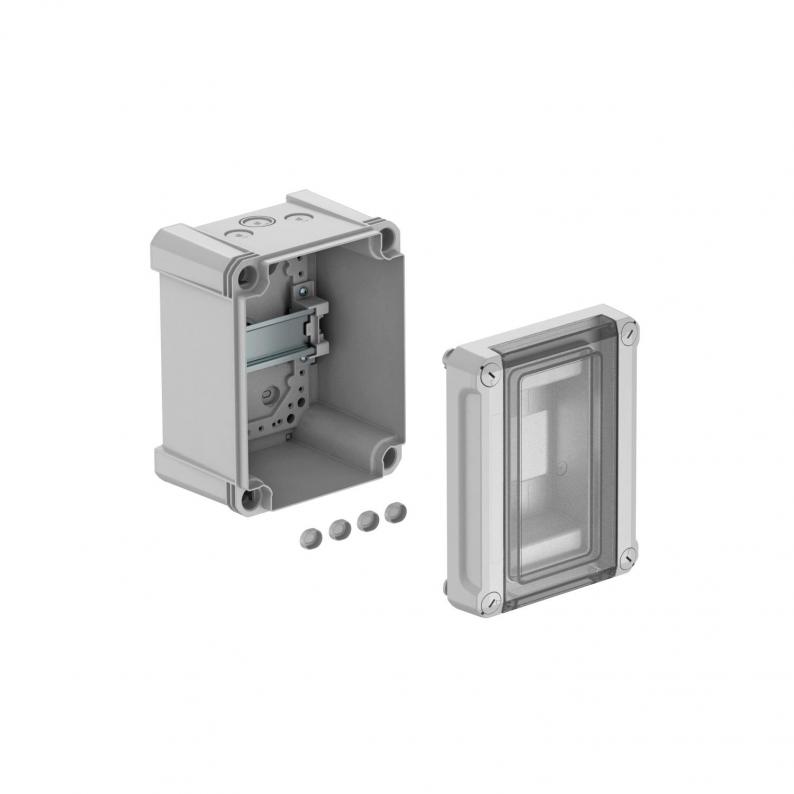

Distribution box, 3 division units, empty, polystyrene

Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.

- Protection-insulated for a maximum of 3 division units

- 2 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25 mm combination break-out opening each at the top and bottom

- 4 screw cover caps
The PS small distributors are suitable for mounting in interiors and in protected exteriors.
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV
