Distribution box, 9 division units, with terminal strip, polycarbonate

Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out.

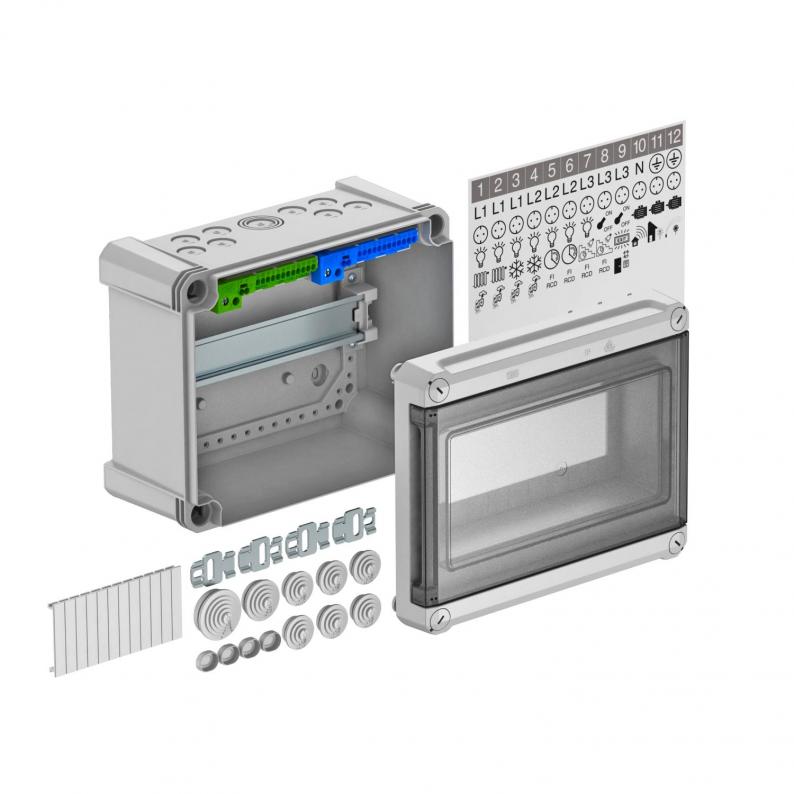

- Protection-insulated for a maximum of 9 division units

- Terminal strip set consisting of: One each of: PE/N terminal (1x25 mm² and 1x16 mm² screw terminals, 2x4 mm² and 12x2.5 mm² screwless terminals), mini hat profile rail, mounting instructions and fastening set

- Identification plates for connected consumers

- 6 elastic cable entries Ø20 mm for cable diameters of 0–17 mm

- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm

- 1 elastic cable entry Ø32 mm for cable diameters of 0–28 mm

- 8 Ø 20 mm break-out openings each at the top and bottom

- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom

- 4 screw cover caps

- 2 stainless steel external fastenings

- Cover strips for unused division units
Nominal current 63 A
Power loss at 40 K 20.7 W
