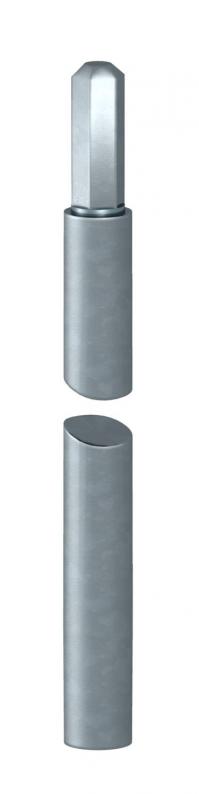

Earth rod OMEX, hot galvanised, 20 mm

Earth rod OMEX, hot galvanised, 20 mm

Type 219 20 OMEX FT
|
Item no. 5000017
|
EAN 4012195371298
Show all variants
Item no. / Type
Length
External diameter

Smallest selling unit: 5 piece

piece

Description

219/..: Çok dayanıklı tipte çubuk topraklayıcı

• DIN 48852'ye uygun, Form Z, "OMEX" sistemi
• Tespit etmek için saplamalı ve delikli
• Sertleştirilmiş çelik pimli
• FT versiyonu, min. 60 µm çinko kaplamadır
• VDE 0185-305'e (IEC 62305) uygundur
  • Yıldırım akımı test edilip onaylandı
  • CO₂ footprint (PCF)

Technical data

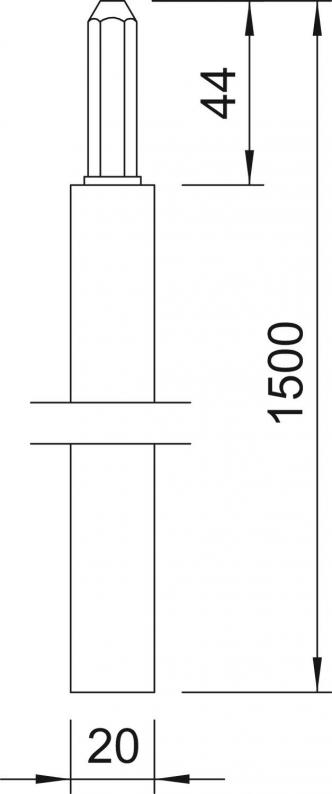

Dimensions

Length1500 mm
Dimension D20 mm

Technical data

Profile typeRound D=20 mm
External diameter20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)7,9 kA
Lightning current carrying capacityH/100 kA
Boyut1,5m
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya10,3243 kg CO2e / 1 Adet

Accessories

Mounting accessories
Type
1819 20

Smallest selling unit: 5 piece

piece

Type
1820 20

Smallest selling unit: 1 piece

piece

Type
2710 20 FT

Smallest selling unit: 5 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
219 20 OMEX FT
Item no.
5000017
Length
1500
External diameter
20
Material
Steel
219 20 OMEX FT
Item no.
5000203
Length
2000
External diameter
20
Material
Steel
