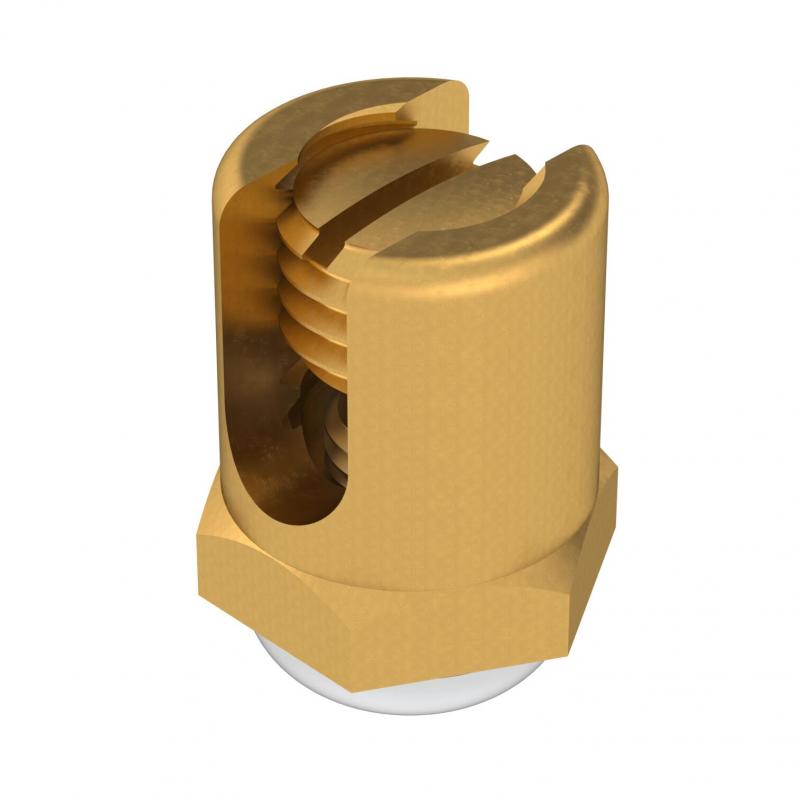

Earthing terminal with fastening thread
Type EKL 25 M8
|Item no. 6404001
|EAN 4012196040438
Item no. / Type
Dimension L
Kesit
Smallest selling unit: 50 piece
50piece
piece
Description
Earthing terminal for fastening the equipotential bonding wire to the cable support system. M12 threaded pin with slot. Suitable for conductor cross sections of 4-50 mm². With serrated washer and lenshead screw.
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Vida dişi | M8 |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | yes |
| With screw accessories | no |
| WAF | 18 |
| Kesit | 50 mm² |
| Boyut | 4-50mm² |
| Material | Brass |
| Colour | Brass |
Dimensions
| Dimension L | 22 mm |
|---|---|
| Dimension l | 8 mm |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,1312 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension L
Kesit
Item no.
EKL 25 M8
22
50
6404001
EKL 25 M6
22
50
6404006
EKL 35 M6
26
75
6404014
Dimension L
Kesit
EKL 25 M8
Item no.
6404001
Dimension L
22
Kesit
50
EKL 25 M6
Item no.
6404006
Dimension L
22
Kesit
50
EKL 35 M6
Item no.
6404014
Dimension L
26
Kesit
75
