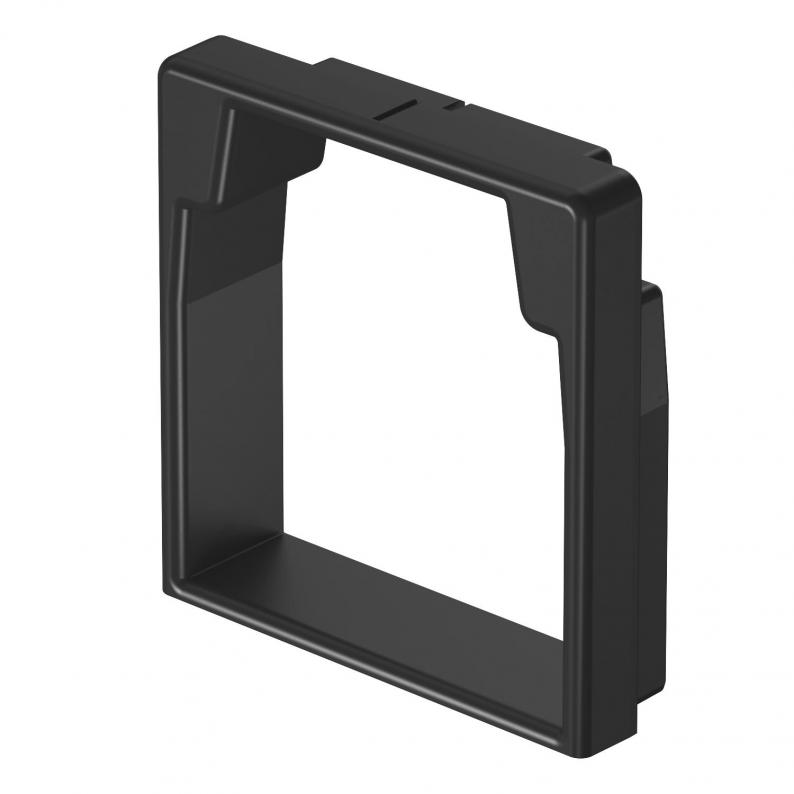

Edge protection ring KSR 60060, for LKM cable trunking type 60060

Type LKM KSR60060
|
Item no. 6249752
|
EAN 4012197377007

Description

Edge protection ring for the open ends of LKM cable trunking.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length18 mm
Width63 mm
Height65 mm

Technical data

Halojen İçermezyes
Koruma sınıfıIP30
Protection rating IK codeIK10
Suitable forCable routing duct
TypeInjection-moulded part
Sac kalınlığı min.0,75 mm
Boyut60x60mm
MaterialThermoplastic elastomer
ColourGraphite black; RAL 9011

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,0329 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

LKM KSR60060
Item no.
6249752
