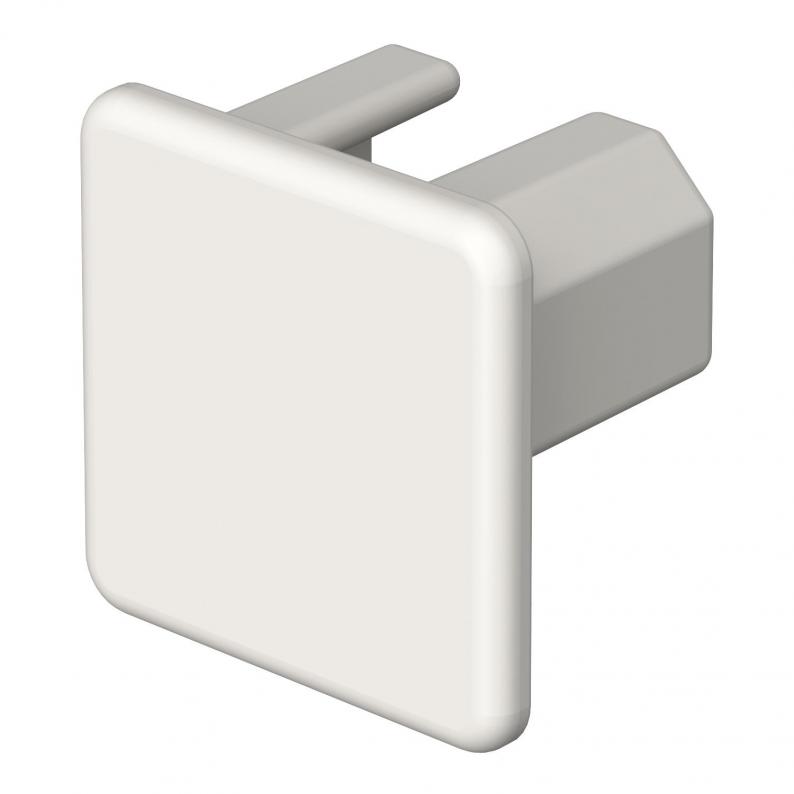

End piece, trunking type WDK 20020

End piece, trunking type WDK 20020

Type WDK HE20020RW
|
Item no. 6193129
|
EAN 4012196797295
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length11,5 mm
Width17 mm
Height17 mm
Dimension H20 mm
Dimension b17 mm
Dimension a17 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension20x20mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,0068 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,0068 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE20020GR
Item no.
6158706
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Stone grey; RAL 7030
WDK HE20020CW
Item no.
6162509
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Cream; RAL 9001
WDK HE20020LGR
Item no.
6183611
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Light grey; RAL 7035
WDK HE20020RW
Item no.
6193129
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Pure white; RAL 9010
