End piece, trunking type WDK 25025

End piece, trunking type WDK 25025

Type WDK HE25025GR
|
Item no. 6158730
|
EAN 4012196434657
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

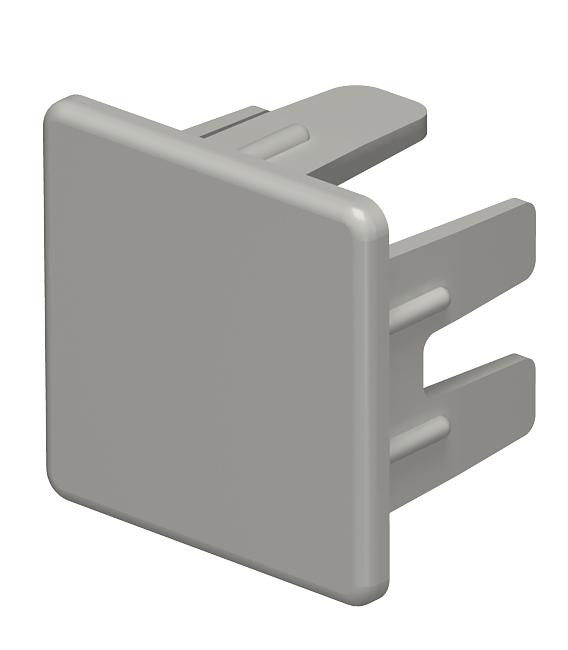

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length17 mm
Width25 mm
Height25 mm
Dimension H25 mm
Dimension b25 mm
Dimension a25 mm

Technical data

Maintain electrical functionsno
Halojen İçermezno
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut25x25mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0124 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE25025GR
Item no.
6158730
Dimension H
25
Dimension b
25
Dimension a
25
Colour
Stone grey; RAL 7030
WDK HE25025CW
Item no.
6162533
Dimension H
25
Dimension b
25
Dimension a
25
Colour
Cream; RAL 9001
WDK HE25025LGR
Item no.
6183662
Dimension H
25
Dimension b
25
Dimension a
25
Colour
Light grey; RAL 7035
WDK HE25025RW
Item no.
6193145
Dimension H
25
Dimension b
25
Dimension a
25
Colour
Pure white; RAL 9010
