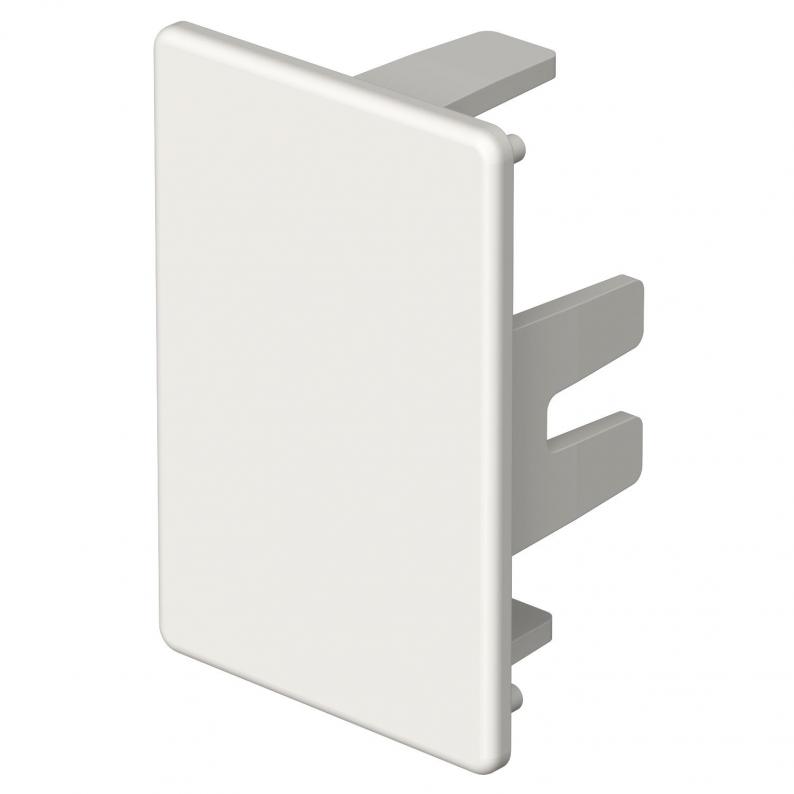

End piece, trunking type WDK 30045

End piece, trunking type WDK 30045

Type WDK HE30045RW
|
Item no. 6193196
|
EAN 4012196497355
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length17 mm
Width45 mm
Height30 mm
Dimension H45 mm
Dimension b30 mm
Dimension a45 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension30x45mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,0176 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0176 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE30045GR
Item no.
6158803
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Stone grey; RAL 7030
WDK HE30045CW
Item no.
6162584
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Cream; RAL 9001
WDK HE30045LGR
Item no.
6183700
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Light grey; RAL 7035
WDK HE30045RW
Item no.
6193196
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Pure white; RAL 9010
