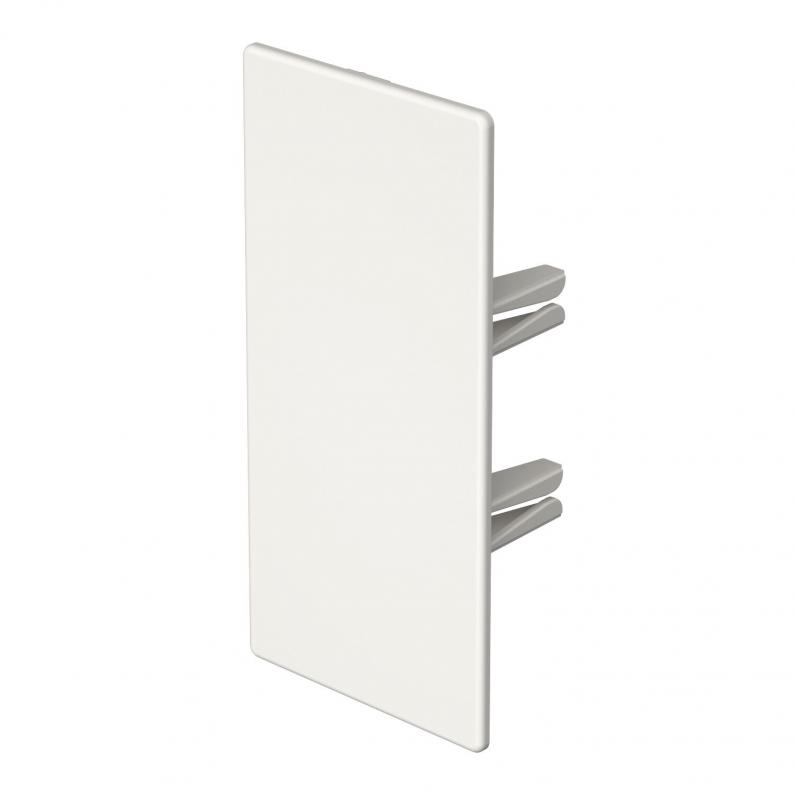

End piece, trunking type WDK 60130

End piece, trunking type WDK 60130

Type WDK HE60130RW
|
Item no. 6193315
|
EAN 4012196713110
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length27,5 mm
Width130 mm
Height60 mm
Dimension H130 mm
Dimension b61 mm
Dimension a130 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension60x130mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,1219 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1219 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK HE60130GR
Item no.
6022529
Dimension H
130
Dimension b
61
Dimension a
130
Colour
Stone grey; RAL 7030
WDK HE60130CW
Item no.
6162835
Dimension H
130
Dimension b
61
Dimension a
130
Colour
Cream; RAL 9001
WDK HE60130LGR
Item no.
6183832
Dimension H
130
Dimension b
61
Dimension a
130
Colour
Light grey; RAL 7035
WDK HE60130RW
Item no.
6193315
Dimension H
130
Dimension b
61
Dimension a
130
Colour
Pure white; RAL 9010
