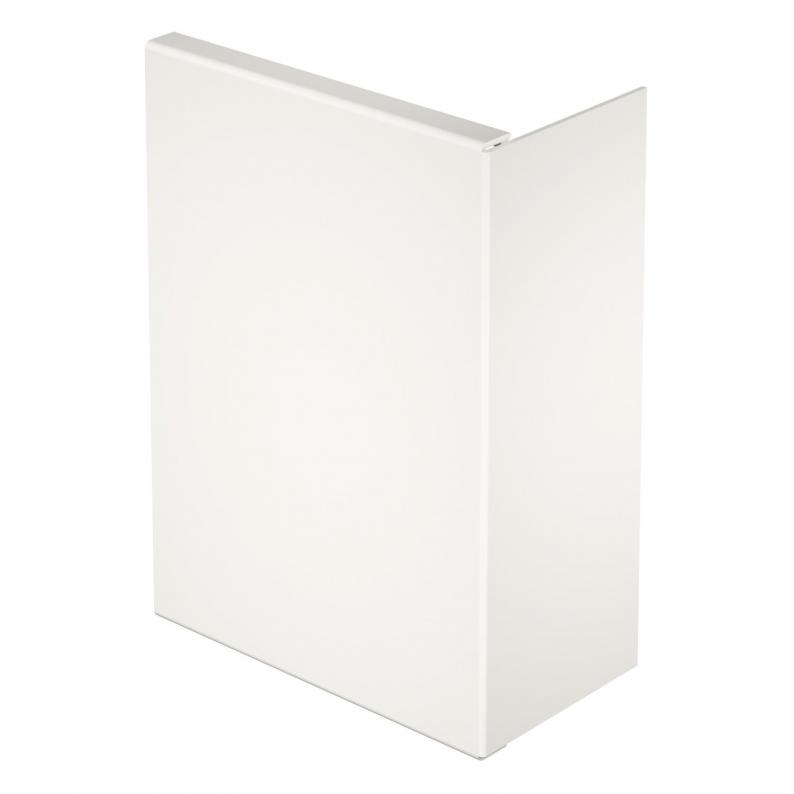

End piece, trunking type WDK 80210

End piece, trunking type WDK 80210

Type WDK HE80210RW
|
Item no. 6193391
|
EAN 4012195042587
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length150 mm
Width210 mm
Height80 mm
Dimension H210 mm
Dimension b80 mm
Dimension a150 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protective filmno
Protection ratingIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension80x210mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,4774 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,4774 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Dimension b
Colour
WDK HE80210GR
Item no.
6024874
Dimension H
210
Dimension b
210
Dimension a
150
Colour
Stone grey; RAL 7030
WDK HE80210CW
Item no.
6163017
Dimension H
210
Dimension b
210
Dimension a
150
Colour
Cream; RAL 9001
WDK HE80210LGR
Item no.
6183921
Dimension H
210
Dimension b
210
Dimension a
150
Colour
Light grey; RAL 7035
WDK HE80210RW
Item no.
6193391
Dimension H
210
Dimension b
80
Dimension a
150
Colour
Pure white; RAL 9010
