Fastening clip 822, heavy duty, A4

Fastening clip 822, heavy duty, A4

Type 822 16 A4
|
Item no. 1013877
|
EAN 4012195911814
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Fastening clip, single-lobe, 16 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

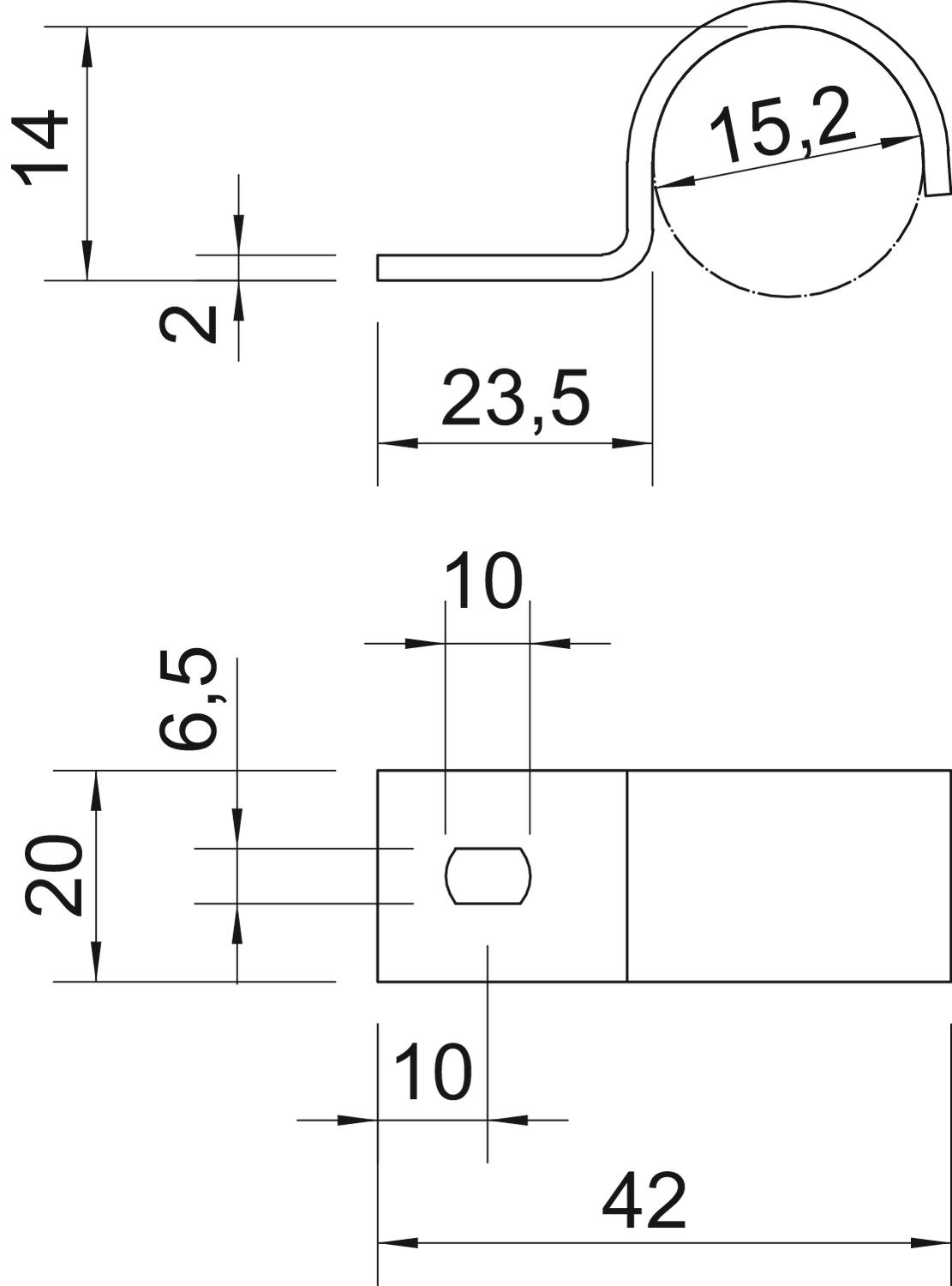

Dimensions

Length42 mm
Width20 mm
Height14 mm
Dimension L23,5 mm
Dimension A10 mm
Dimension H14 mm
Dimension t2 mm
Dimension b20 mm
Dimension L142 mm
Dimension D15,2 mm

Technical data

Material thickness2 mm
For diameter15,2
Hole size6,5 x 10
Halogen-freeyes
SizeM16
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter15,2 mm
Distance to the wallno
Version forSingle-lobe
Fastening typeScrew hole
Dimension16mm
SurfaceBright, treated
MaterialStainless steel 1.4571

Environmental Data

0,0888 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0888 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

For diameter
822 6 A4
Item no.
1013861
For diameter
6
822 10 A4
Item no.
1013865
For diameter
10
822 12 A4
Item no.
1013869
For diameter
12
822 14 A4
Item no.
1013873
For diameter
14
822 16 A4
Item no.
1013877
For diameter
15,2
822 18 A4
Item no.
1013881
For diameter
18,6
822 20 A4
Item no.
1013885
For diameter
20
822 22.5 A4
Item no.
1013889
For diameter
22,5
822 25 A4
Item no.
1013893
For diameter
25
822 32 A4
Item no.
1013903
For diameter
32
822 40 A4
Item no.
1013911
For diameter
40
822 50 A4
Item no.
1013921
For diameter
50
822 63 A4
Item no.
1013925
For diameter
63
