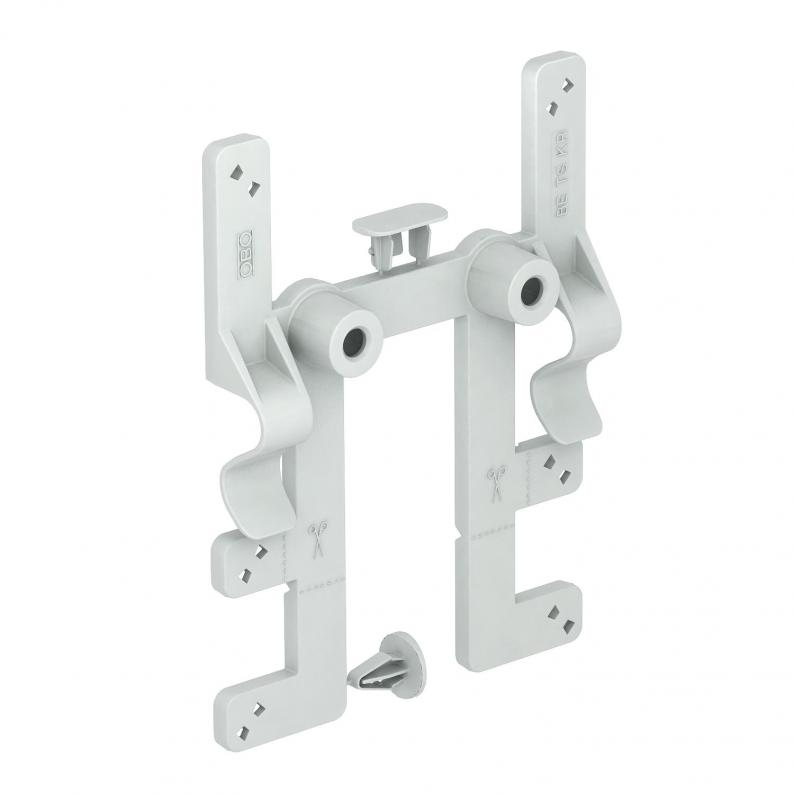

Fastening element for cable junction box on cable trays
Type BE TS KR
|Item no. 2007835
|EAN 4012195840640
Item no. / Type
2007835 / BE TS KR
Width
104 mm
Height
139 mm
Smallest selling unit: 10 piece
10piece
piece
Description
The fastening element BE TS KR can be used to attach OBO junction boxes, type T60 and T100, to all standard cable trays in a few actions, quickly and without tools.
This keeps the junction box securely in position. However, it can be quickly dismantled as necessary. This is all done without using tools.
This keeps the junction box securely in position. However, it can be quickly dismantled as necessary. This is all done without using tools.
Technical data

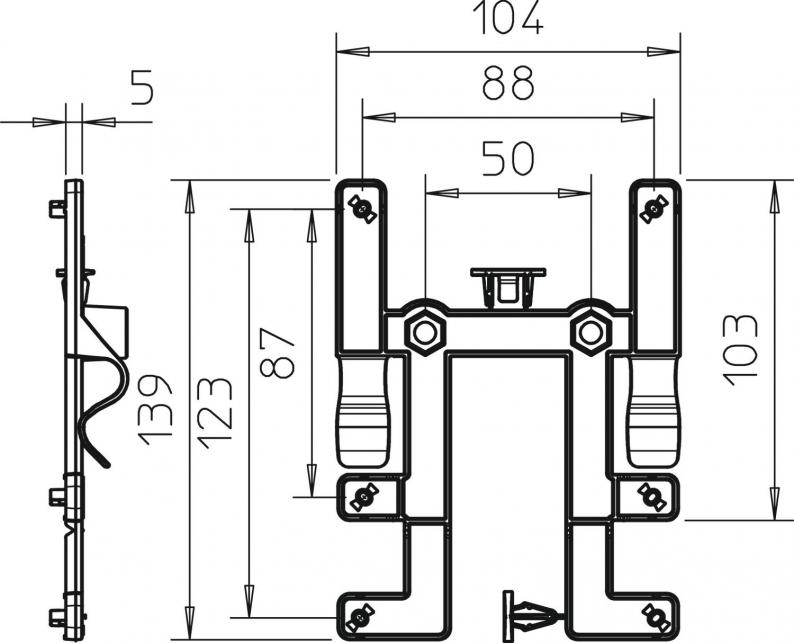

Dimensions
| Width | 104 mm |
|---|---|
| Height | 139 mm |
Technical data
| Paslanmaz çelik, mordanlı | hayır |
|---|---|
| Fastening type | Klemens tespit elemanı |
| Version for | Yatay |
| Material | Polycarbonate |
| Colour | Light grey |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1474 kg CO2e / 1 Adet |
|---|
