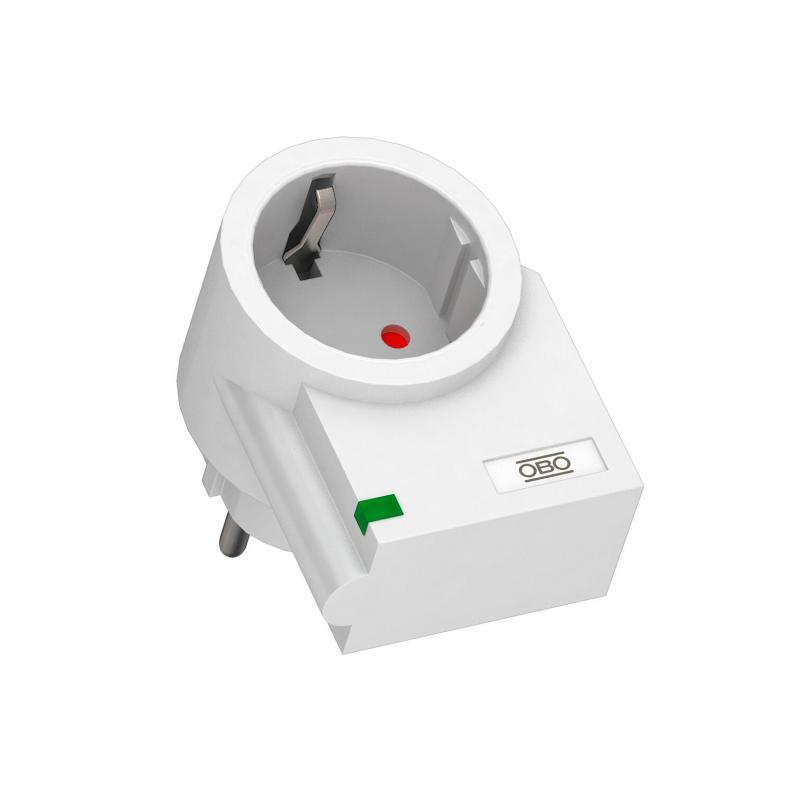

FineController FC-D for protective contact socket

Type FC-D

Item no. 5092800

EAN 4012195035053

Data sheet (PDF)

Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5092800 / FC-D

Country-specific version

Smallest selling unit: 1 piece

piece

Description

Type 3 surge protective device to EN 61643-11,

intended for use in protective contact sockets.

• Adapter connector

• Cut-off unit and function display

• With increased touch protection

Technical data

Dimensions

Length	78,3 mm
Width	55 mm
Height	75 mm

Technical data

Telekomünikasyon kontağı	no
Söndürmeli	no
Cihazda sinyalizasyon	Visual
Koruma sınıfı	IP20
Anma gerilimi	230 V
Remote signalling	no
Test class, type 2	no
Test class, type 3	yes
Nominal voltage AC (50/60 Hz)	230 V
Integrated back-up fuse	no
Koruma seviyesi [L-N]	≤1,5
Maximum continuous voltage AC	275 V
Nominal discharge current (8/20 µs)	3 kA
Installation type	Wall socket
Max. mains-side overcurrent protection	16 A
Version for	Schuko
OBO_Nominal load current (input/output terminal)	16 A
Operating temperature, min.	-25 °C
Operating temperature, max.	75 °C
Country-specific version	D
En yüksek sürekli gerilim	275 V
SPD to IEC 61643-1	Class III
EN 61643-11 standardına göre talep sınıfı	Type 3
Lightning protection zone LPZ	2→3
Protection level	<1,5 kV
Anma deşarj akımı	3 kA
Maximum discharge current (8/20 μs)	8 kA
Anma yük akımı	16 A
Devreye girme süresi	<25 ns
Maximum back-up fuse	16 A
Kullanılabilir sıcaklık aralığı min.	-25 °C
Kullanılabilir sıcaklık aralığı maks.	75 °C
Boyut	230V
Colour	Pure white; RAL 9010
