FireBox T100 with plug-in seals, 2 fuse holders
Type T100ED 06A2F
|Item no. 7205758
|EAN 4012196812394
Item no. / Type
Clear internal dimensions
Giriş sayısı
Smallest selling unit: 1 piece
1piece
piece

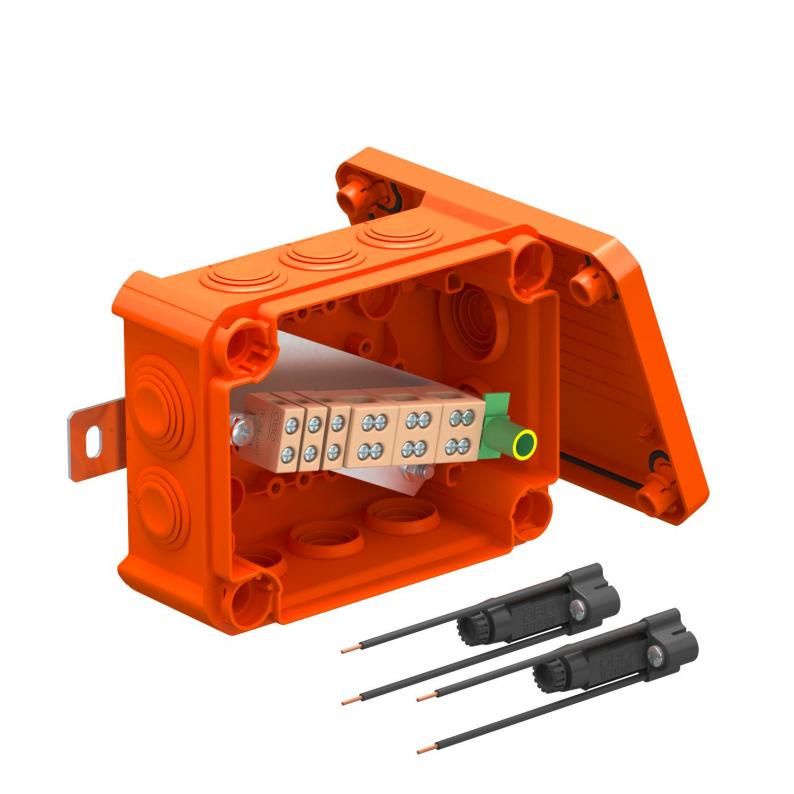

Description
Junction box with two fuse holders and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.
Including 2x MMSplus P 6x35 screw ties.
Including 2x MMSplus P 6x35 screw ties.
Technical data

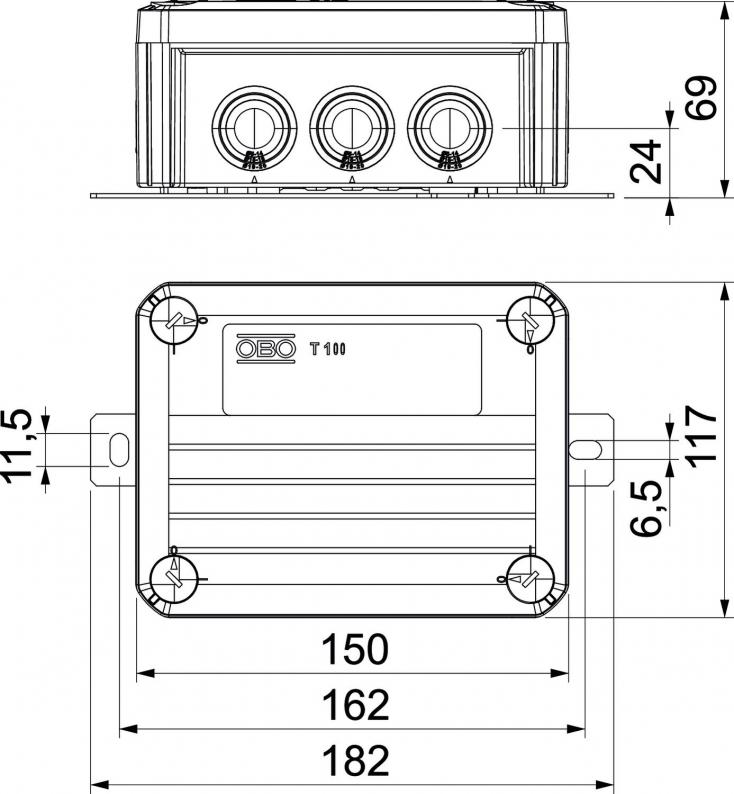

Dimensions
| Length | 150 mm |
|---|---|
| Width | 116 mm |
| Height | 67 mm |
| Clear internal dimensions | 136x102x57 mm |
| Dimension L | 150 mm |
| Dimension B | 116 mm |
| Dimension H | 67 mm |
| Dimension L1 | 162 mm |
| Dimension L2 | 182 mm |
Technical data
| Darbeye dayanıklı | no |
|---|---|
| Halojen İçermez | yes |
| Giriş sayısı | 10 |
| Number of terminals | 7 |
| Arkadan giriş | no |
| Şeffaf kapak | no |
| Koruma sınıfı | IP66 |
| Anma gerilimi | 660 V |
| Expandable | no |
| Kapaklı | yes |
| Sealable | no |
| For Ex zone | Without |
| Measured insulation voltage Vi | 690 V |
| Maintain electrical functions | E 90 |
| Explosion-tested version | no |
| Type of housing penetration | Cuttable stepped membrane |
| Ekranlamalı | no |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Anma kesiti min. | 1,5 mm² |
| Anma kesiti maks. | 6 mm² |
| Shape | Rectangular |
| Equipment | Terminal |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Boyut | 150x116x67 |
| Material | Polypropylene |
| Colour | Pastel orange; RAL 2003 |
| Single terminals | 3 |
| Double terminals | 3 |
| Protective terminal | 1 |
