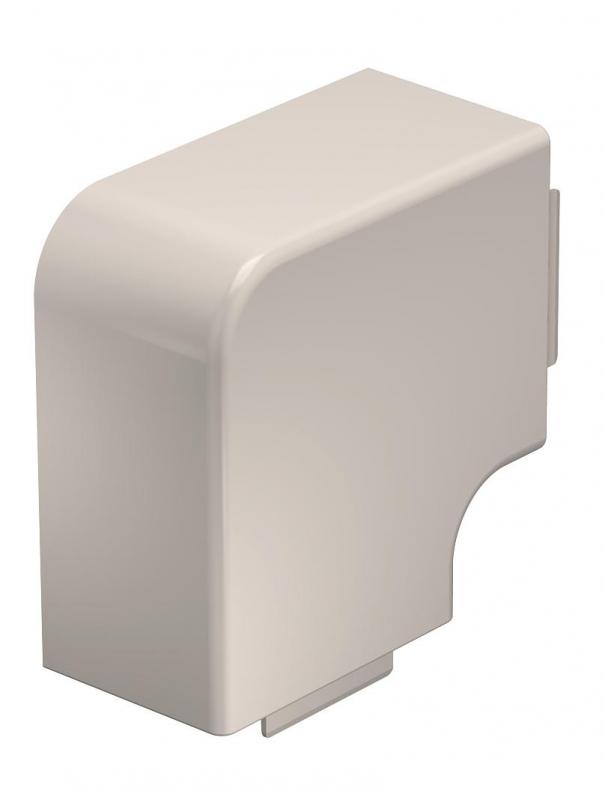

Flat angle cover, trunking type WDK 60090
Type WDK HF60090CW
|Item no. 6161510
|EAN 4012196108138
Item no. / Type
Dimension H
Colour
Smallest selling unit: 2 piece
2piece
piece
Description
Flat angle hood for changing the direction of the WDK trunking.
Technical data
Dimensions
| Length | 129 mm |
|---|---|
| Width | 94 mm |
| Height | 60 mm |
| Dimension H | 90 mm |
| Dimension a | 129 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Kanal ölçüsü için | 60 x 90 |
| Halojen İçermez | no |
| Koruyucu folyo | no |
| Açı aralığı min. | 90 mm |
| Açı aralığı maks. | 90 mm |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK04 |
| Version for | Hood fitting |
| Fastening type | Lockable |
| Kanal derinliği | 60 mm |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 60x90mm |
| Material | Polyvinylchloride |
| Colour | Cream; RAL 9001 |
| Antibacterial treatment | no |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,2343 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension H
Colour
Item no.
WDK HF60090GR
90
Stone grey; RAL 7030
6022316
WDK HF60090CW
90
Cream; RAL 9001
6161510
WDK HF60090LGR
90
Light grey; RAL 7035
6183417
WDK HF60090RW
90
Pure white; RAL 9010
6192920
Colour
WDK HF60090GR
Item no.
6022316
Dimension H
90
Colour
Stone grey; RAL 7030
WDK HF60090CW
Item no.
6161510
Dimension H
90
Colour
Cream; RAL 9001
WDK HF60090LGR
Item no.
6183417
Dimension H
90
Colour
Light grey; RAL 7035
WDK HF60090RW
Item no.
6192920
Dimension H
90
Colour
Pure white; RAL 9010
