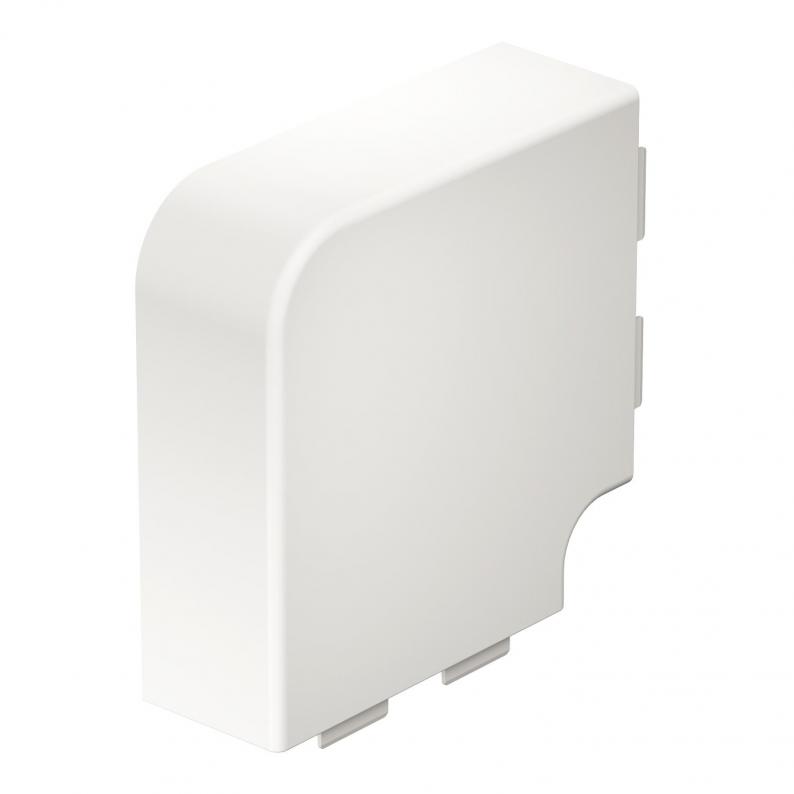

Flat angle cover, trunking type WDK 60150

Flat angle cover, trunking type WDK 60150

Type WDK HF60150RW
|
Item no. 6192955
|
EAN 4012196492671
Show all variants
Item no. / Type
Dimension H
Colour

Smallest selling unit: 2 piece

piece

Description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length190 mm
Width155 mm
Height60 mm
Dimension H150 mm
Dimension a190 mm

Technical data

Maintain electrical functionsno
for duct dimension60 x 150
Halogen-freeno
Protective filmno
Angle range, min.90 mm
Angle range, max.90 mm
Protection ratingIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Trunking depth60 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension60x150mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,4532 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,4532 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

Colour
WDK HF60150GR
Item no.
6024599
Dimension H
150
Colour
Stone grey; RAL 7030
WDK HF60150CW
Item no.
6161561
Dimension H
150
Colour
Cream; RAL 9001

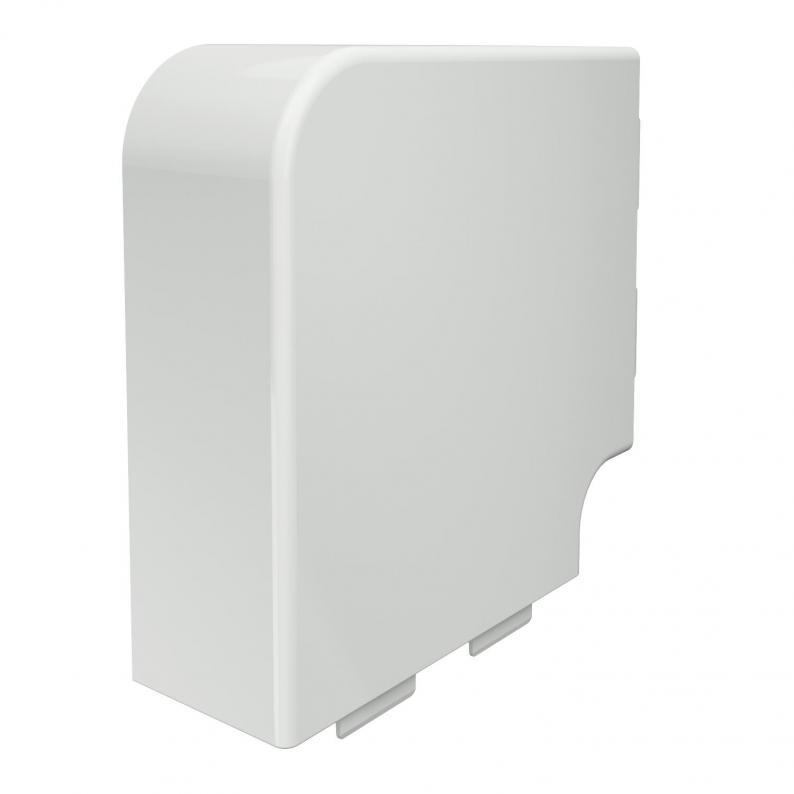

WDK HF60150LGR
Item no.
6183441
Dimension H
150
Colour
Light grey; RAL 7035
WDK HF60150RW
Item no.
6192955
Dimension H
150
Colour
Pure white; RAL 9010
