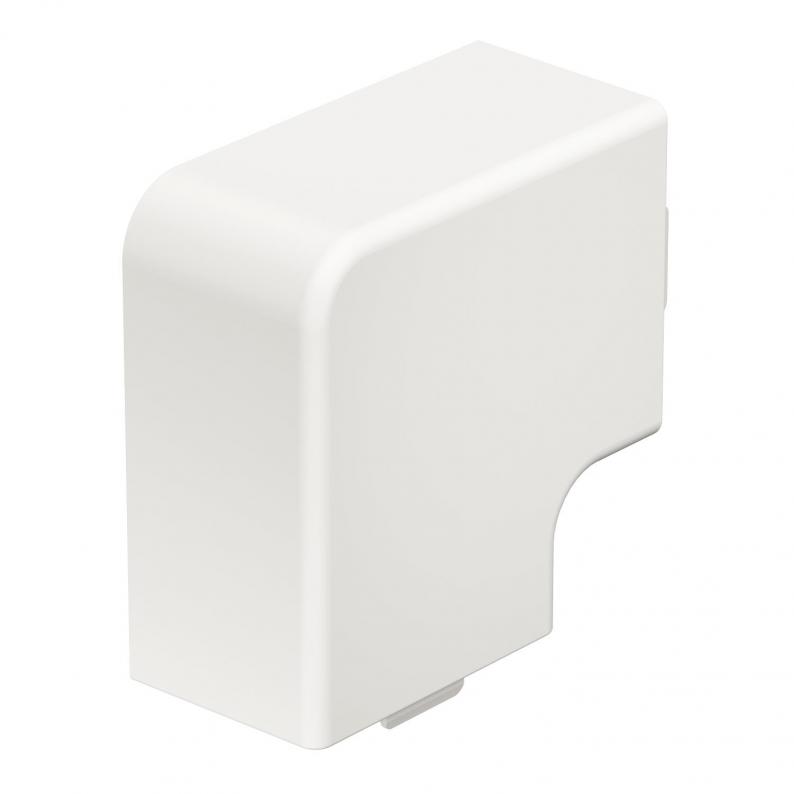

Flat angle cover, trunking type WDKH 30045

Flat angle cover, trunking type WDKH 30045

Type WDKH-F30045RW
|
Item no. 6175662
|
EAN 4012195814115
Show all variants
Item no. / Type
Colour

Smallest selling unit: 4 piece

piece

Description

Flat angle hood for changing the direction of the halogen-free WDKH trunking.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length68 mm
Width45 mm
Height30 mm
Dimension a60 mm

Technical data

Maintain electrical functionsno
for duct dimension30 x 45
Halogen-freeyes
Self-extinguishingyes
Protective filmno
Angle range, min.90 mm
Angle range, max.90 mm
Protection ratingIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Trunking depth30 mm
Duct height, min.45 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension30x45mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,1243 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1243 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDKH-F30045RW
Item no.
6175662
Colour
Pure white; RAL 9010
WDKH-F30045LGR
Item no.
6176040
Colour
Light grey; RAL 7035
