Floor plate for industrial pole

Floor plate for industrial pole

Type ISS160160BP WA
|
Item no. 6290416
|
EAN 4012196191499
Show all variants
Item no. / Type
6290416 / ISS160160BP WA
Length
250 mm
Width
250 mm
Height
8 mm
Colour
White aluminium; RAL 9006

Smallest selling unit: 1 piece

piece

Description

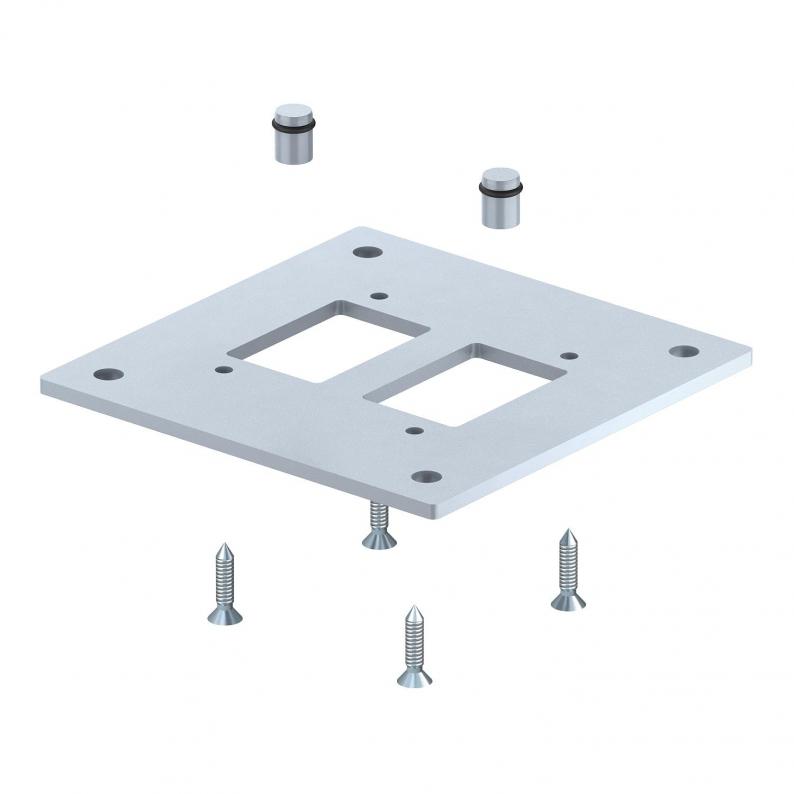

Plate to fasten the ISS industrial pole to the floor. The scope of delivery comprises of four fastening screws to mount the floor plate onto the pole profile and two sealing plugs to make the compressed air channels airtight.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

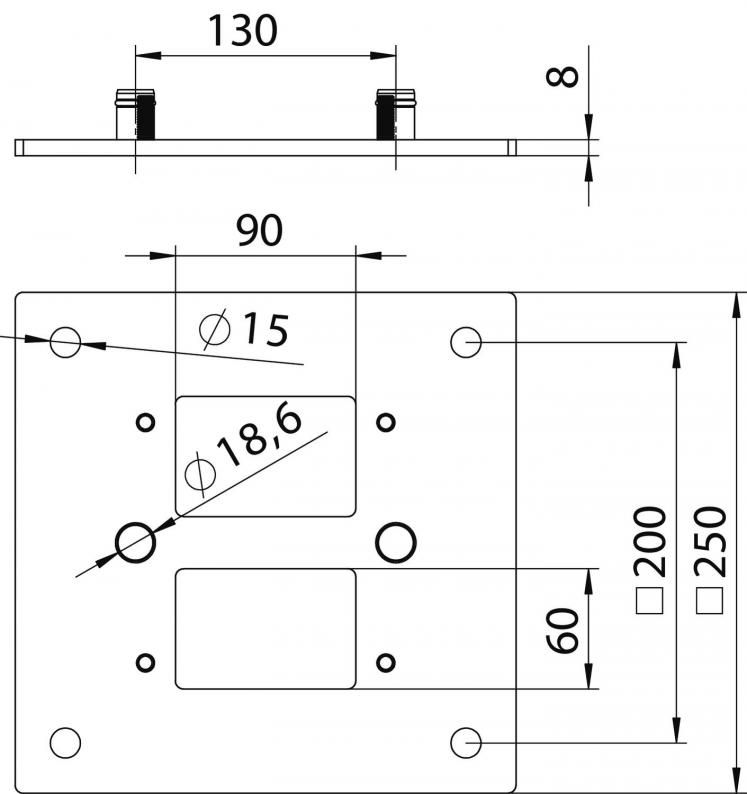

Dimensions

Length250 mm
Width250 mm
Height8 mm

Technical data

Halojen İçermezyes
Ayarlanabilirno
Koruma sınıfıIP30
Protection rating IK codeIK10
Kullanılabilir sıcaklık aralığı min.-25 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut250x250x8
SurfaceStrip galvanized / plastic coated
MaterialSteel
ColourWhite aluminium; RAL 9006

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya11,7156 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

ISS160160BP WA
Item no.
6290416
Length
250
Width
250
Height
8
Colour
White aluminium; RAL 9006
