G mesh cable tray Magic® 150 G
Type G-GRM 150 100 G
|Item no. 6005544
|EAN 4012195686460
Item no. / Type
6005544 / G-GRM 150 100 G
Length
3000 mm
Width
100 mm
Height
150 mm
Maintain electrical functions
yes
Usable cross-section
107 cm²
Tel çapı
3,9 mm
Smallest selling unit: 3 m
3m
m
Description

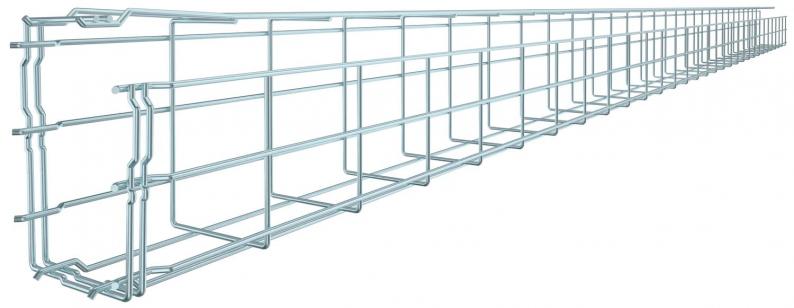

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Technical data

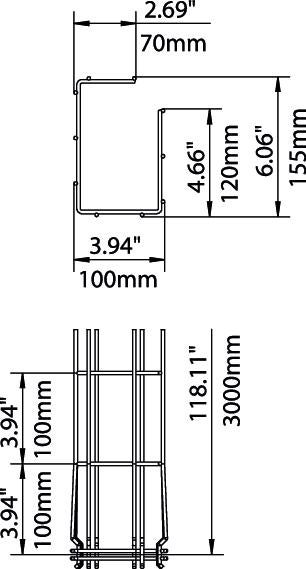

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 150 mm |
| Dimension A | 120 mm |
| Dimension B | 100 mm |
| Dimension H | 155 mm |
| Dimension C | 68 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 107 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 10700 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | G-shaped |
| Tel çapı | 3,9 mm |
| Boyut | 150x100x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
Loads
| Destek aralığı 1,0m | 0,6 kN/m |
|---|---|
| Destek aralığı 1,5m | 0,5 kN/m |
| Destek aralığı 2,0m | 0,35 kN/m |
| Destek aralığı 2,5m | 0,3 kN/m |
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 2,3738 kg CO2e / 1 Meter |
|---|
