G mesh cable tray Magic® 50 FT
Type G-GRM 50 50 FT
|Item no. 6005520
|EAN 4012195686392
Item no. / Type
6005520 / G-GRM 50 50 FT
Length
3000 mm
Width
50 mm
Height
50 mm
Maintain electrical functions
no
Usable cross-section
17 cm²
Tel çapı
3,9 mm
Smallest selling unit: 3 m
3m
m
Description

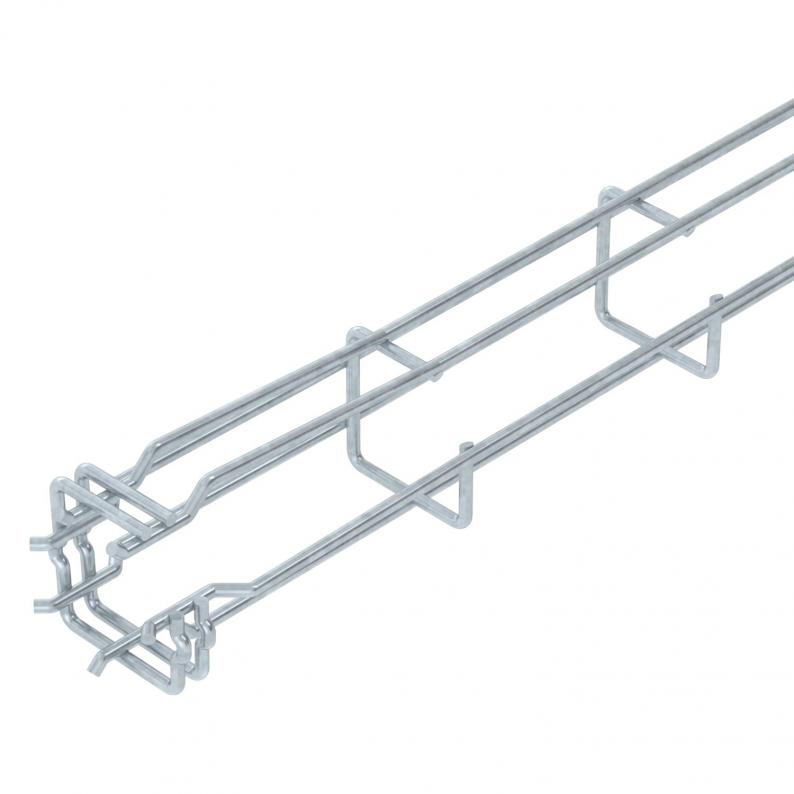

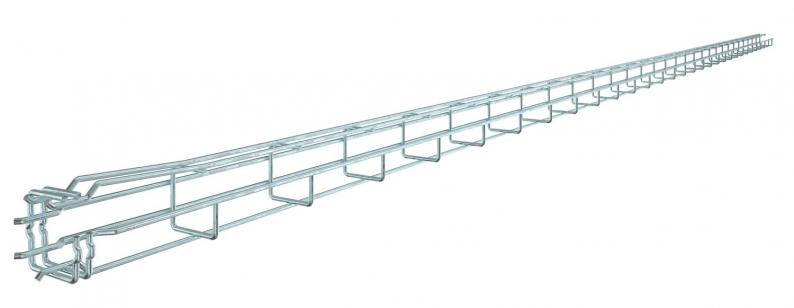

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
Technical data

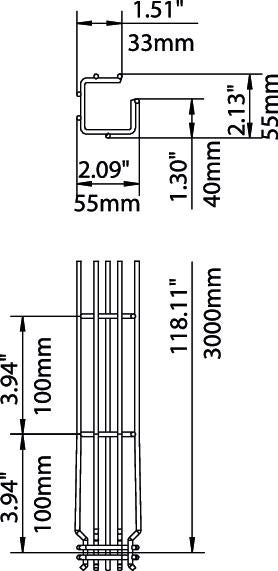

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 50 mm |
| Dimension A | 38 mm |
| Dimension B | 55 mm |
| Dimension H | 55 mm |
| Dimension C | 33 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 17 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 1700 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | G-shaped |
| Tel çapı | 3,9 mm |
| Boyut | 50x50x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 1,4885 kg CO2e / 1 Meter |
|---|
