Gas concrete anchor 6
Type 910 GD 6x35
|Item no. 2347229
|EAN 4012195828198
Item no. / Type
2347229 / 910 GD 6x35
Length
35 mm
Diameter
6 mm
Drill hole diameter, min.
6 mm
Drill hole depth
41 mm
Smallest selling unit: 100 piece
100piece
piece
Description
The anchor can be knocked directly into the porous concrete (gas concrete resistance class AAC2 or AAC3). With a resistance class of AAC4 or greater, a 3,5 mm hole should be pre-drilled.
Screw length: Component thickness + 40 mm (6 mm) / 55 mm (8 mm).
Screw length: Component thickness + 40 mm (6 mm) / 55 mm (8 mm).
Technical data

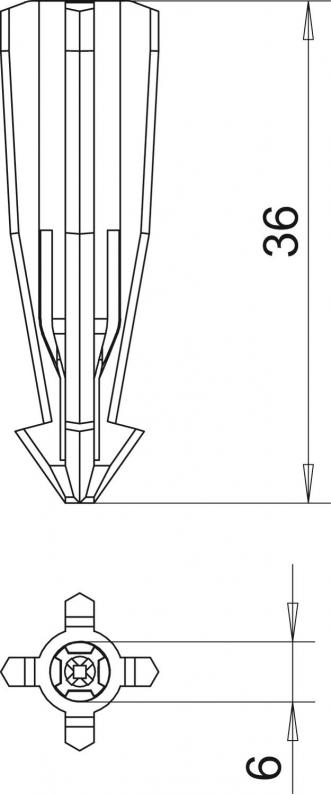

Dimensions
| Length | 35 mm |
|---|---|
| Dimension L | 35 mm |
| Dimension D | 6 mm |
Technical data
| Diameter | 6 mm |
|---|---|
| Halogen-free | yes |
| With bolts | no |
| Suitable for hexagonal wood screw | yes |
| Suitable for fastening with cable ties | no |
| Suitable for screw diameter, min. | 3,5 mm |
| Suitable for screw diameter, max. | 5 mm |
| Drill hole diameter, min. | 6 mm |
| Drill hole depth | 41 mm |
| Dimension | 6x35mm |
| Material | Polyamide |
| Colour | Light grey |
Environmental Data
0,0048 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0048 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Diameter
Drill hole diameter, min.
Drill hole depth
Item no.
910 GD 6x35
35
6
6
41
2347229
910 GD 6x35
Item no.
2347229
Length
35
Diameter
6
Drill hole diameter, min.
6
Drill hole depth
41
