Grip 40
Type 2031 40
|Item no. 2205416
|EAN 4012195651666
Item no. / Type
Smallest selling unit: 25 piece
25piece
piece
Description

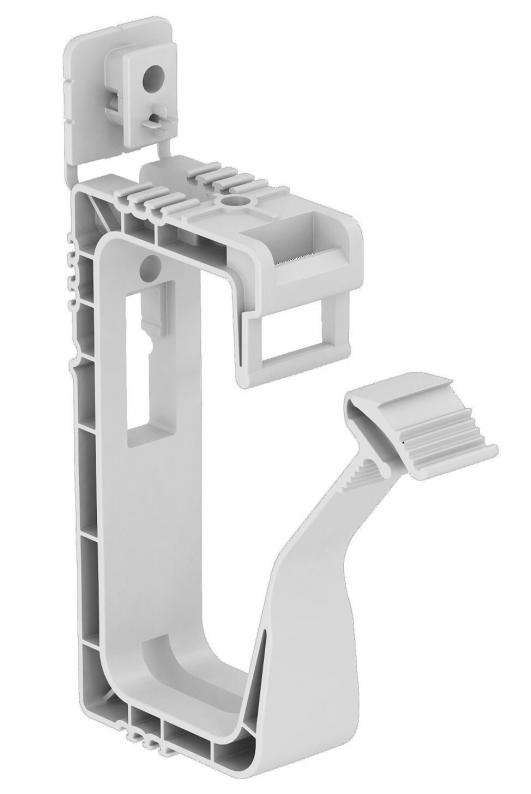

Collection clamp for general use with fastening holes of Ø 6 mm, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun. The recommended fastening spacing when assigned fully is 250–400 mm.
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | hayır |
|---|---|
| Kablo NYM 3 x 1,5 sayısı | 40 |
| Halojen İçermez | evet |
| Aleve karşı dayanıklı tipi | hayır |
| With anchor | hayır |
| Kırılma yükü | 0,32 kN |
| Boyut | 40x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,1352 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Kablo NYM 3 x 1,5 sayısı
Item no.
2031 40
40
2205416
2031 40 SP
40
2205420
2031 40
Item no.
2205416
Kablo NYM 3 x 1,5 sayısı
40
2031 40 SP
Item no.
2205420
Kablo NYM 3 x 1,5 sayısı
40
