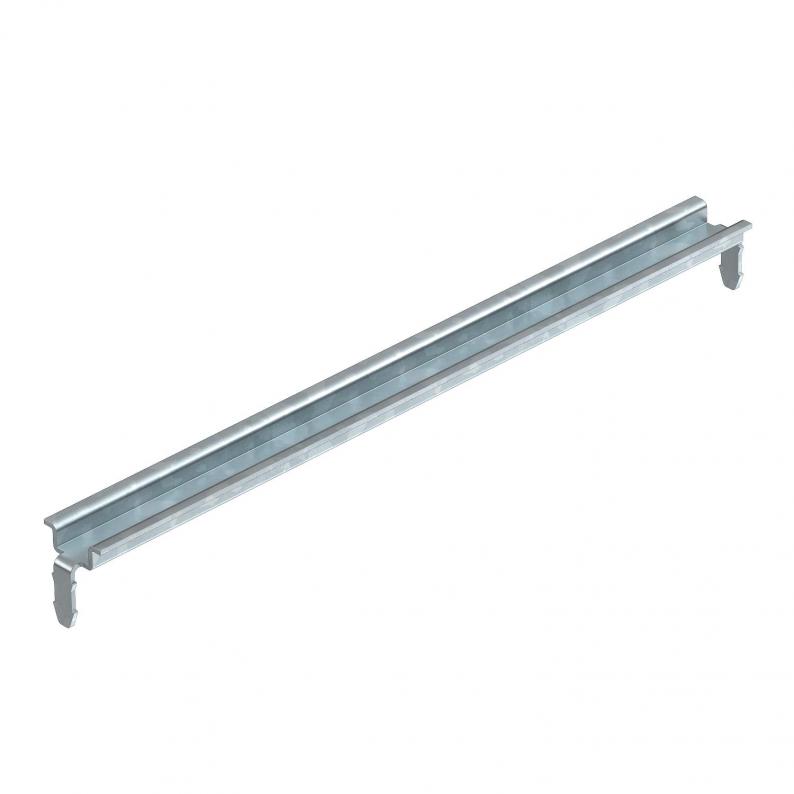

Hat profile rail 15 x 5 mm

Hat profile rail 15 x 5 mm

Type 46277 T160 Q GTP
|
Item no. 1115270
|
EAN 4012195897958
Show all variants
Item no. / Type
Length
Version for

Smallest selling unit: 10 piece

piece

Description

DIN EN 50045'e (daha önce DIN 46277 Kısım 2) uygun 15 x 5 mm C profil taşıma rayı.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

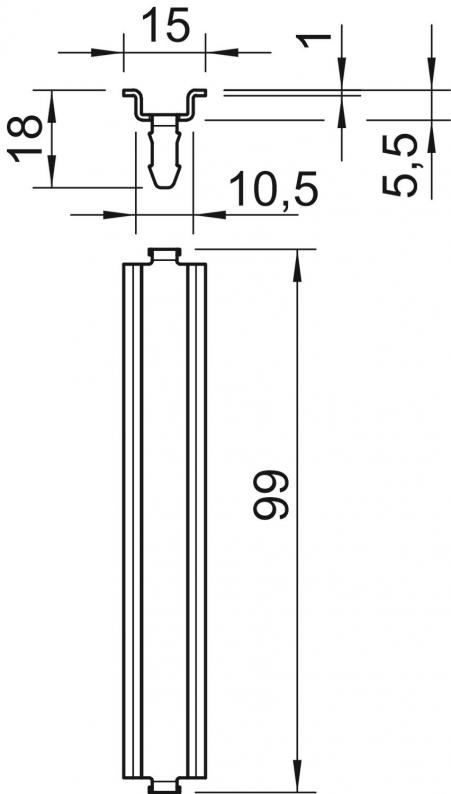

Dimensions

Length99 mm
Width15 mm
Height5 mm

Technical data

Material thickness1 mm
Version, railsSupport rail DIN EN 60715
Hole shape (ETIM)Yok
Version forFor T160 crosswise + T100 lengthwise
Boyut99x15x7,4
SurfaceElectrogalvanized, transparently passivated
MaterialSteel

Environmental Data

Packaging made completely from recycled cardboard.evet
CO2 ayak izi (GWP) beşikten kapıya0,0434 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

Length
Version for
46277 T160 Q GTP
Item no.
1115270
Length
99
Version for
For T160 crosswise + T100 lengthwise
Surface
Electrogalvanized, transparently passivated
Material
Steel
46277 T250 Q GTP
Item no.
1115274
Length
139
Version for
For T250 crosswise + T160 lengthwise
Surface
Electrogalvanized, transparently passivated
Material
Steel
46277 T250 L GTP
Item no.
1115278
Length
189
Version for
For T 250 lengthwise
Surface
Electrogalvanized, transparently passivated
Material
Steel
46277 T350 Q GTP
Item no.
1115282
Length
161
Version for
For T 350 crosswise
Surface
Electrogalvanized, transparently passivated
Material
Steel
46277 T350 L GTP
Item no.
1115286
Length
168
Version for
For T 350 lengthwise
Surface
Electrogalvanized, transparently passivated
Material
Steel
