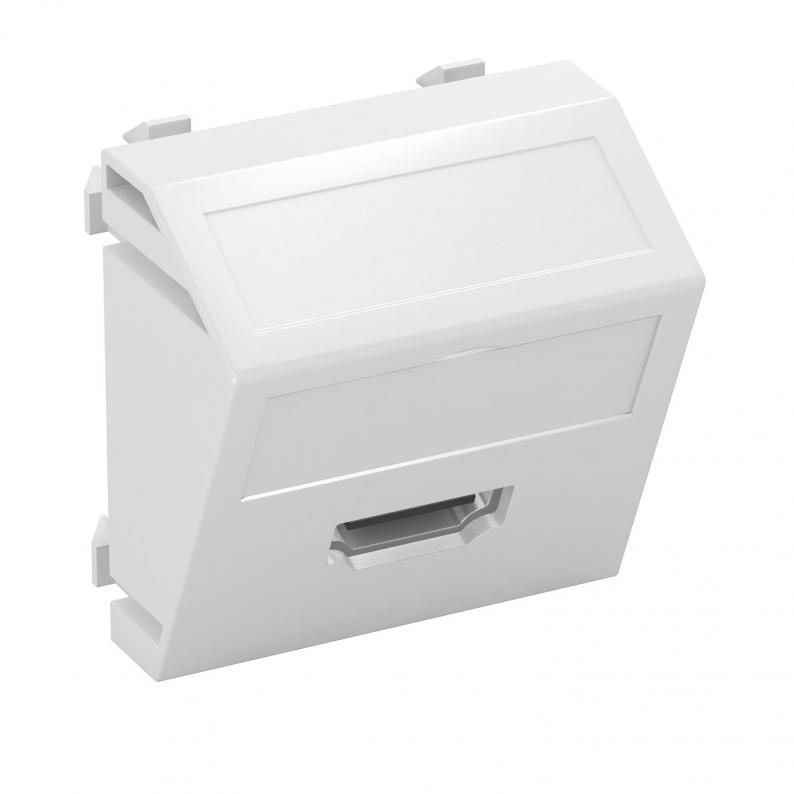

HDMI connection, 1 module, slanting outlet, as screw connection
Type MTS-HD S RW1
|Item no. 6104814
|EAN 4012195898931
Item no. / Type
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
Multimedia support with one HDMI connection socket, slanting cable outlet, with labelling panel, HDMI socket with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

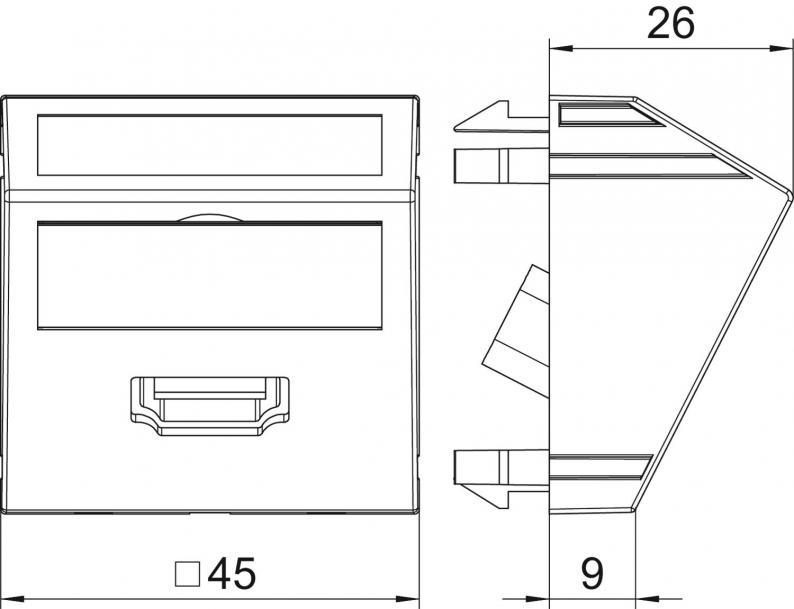

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halojen İçermez | yes |
| Ünite sayısı | 1 |
| Çekme yükü azaltma imkanı | no |
| Koruma sınıfı | IP20 |
| Support ring | no |
| With dust protection | no |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 26 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | HDMI |
| Labelling panel | With labelling panel |
| Fastening type | Lock |
| Boyut | 45x45mm |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,4947 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Use
Colour
Outlet direction
Item no.
MTS-HD S RW1
HDMI
Pure white; RAL 9010
6104814
MTS-HD S SWGR1
HDMI
Black-grey; RAL 7021
Sloping
6104817
MTS-HD S AL1
HDMI
Aluminium painted
6104820
