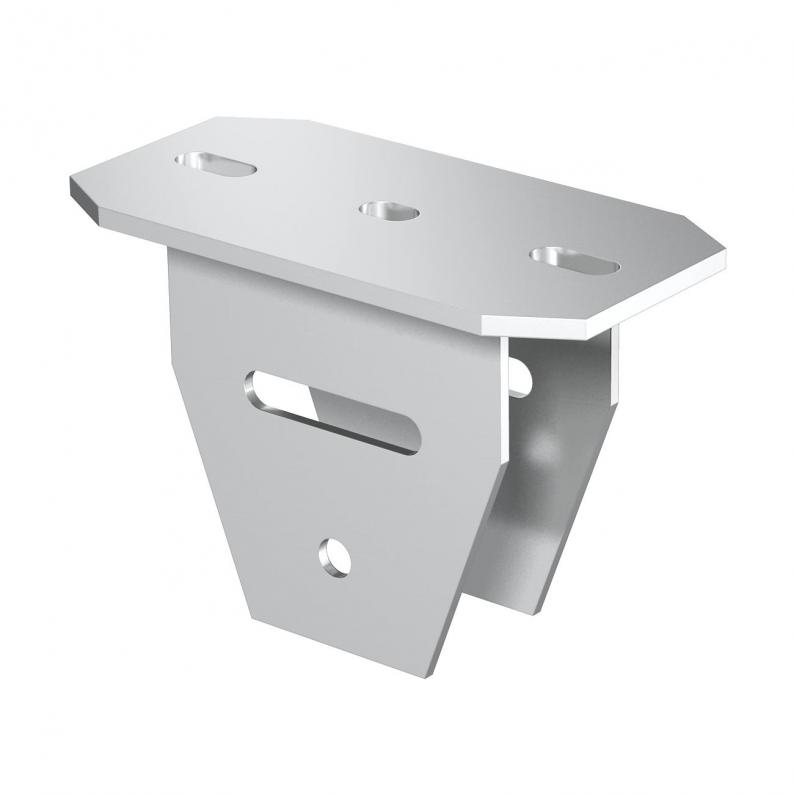

Head plate, variable A2

Head plate, variable A2

Type KU 7 VQP A2
|
Item no. 6349196
|
EAN 4012196191536
Show all variants
Item no. / Type
6349196 / KU 7 VQP A2
Length
200 mm
Width
100 mm
Height
136,5 mm

Smallest selling unit: 1 piece

piece

Description

Variable head plate for installation on US 7 support.

Please order fastening material (two hexagonal bolts SKS 12 x 100 and spacer DSK 45) separately.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length200 mm
Width100 mm
Height136,5 mm

Technical data

Rustproof steel, pickledno
Suitable for ceiling fasteningyes
Suitable for panel fasteningno
Suitable for profile shapesU profile
Version forScrew head plate
Dimension200x100
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel

Environmental Data

11,1394 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate11,1394 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

KU 7 VQP A2
Item no.
6349196
Length
200
Width
100
Height
136,5
