Heavy mesh cable tray SGR 55 A2
Type SGR 55 100 A2
|Item no. 6000909
|EAN 4012196622108
Item no. / Type
Length
Width
Height
Usable cross-section
Tel çapı
Smallest selling unit: 3 m
3m
m
Description

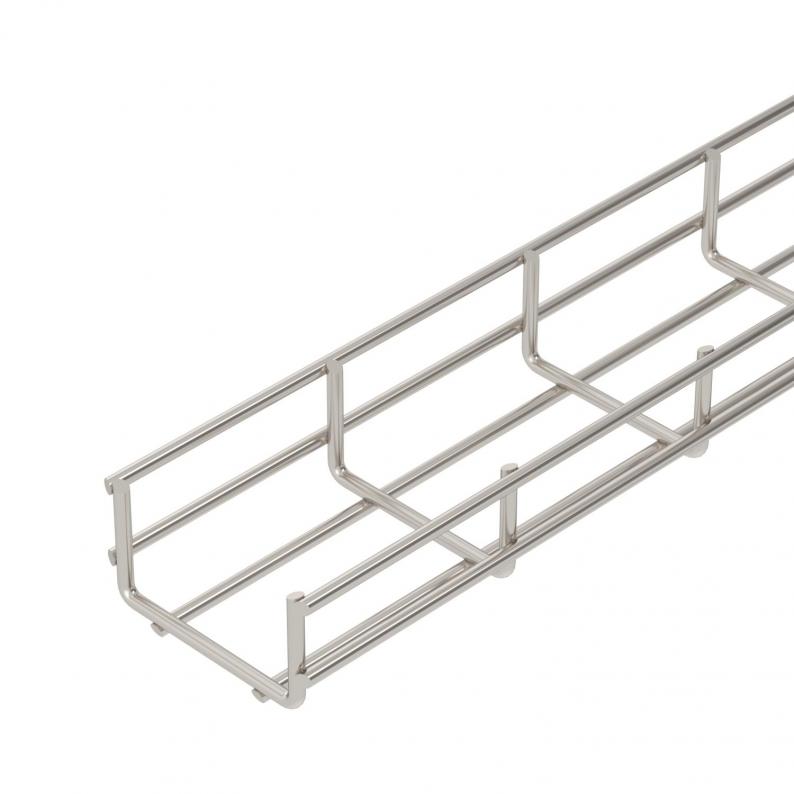

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid width is 50 x 100 mm.
Technical data

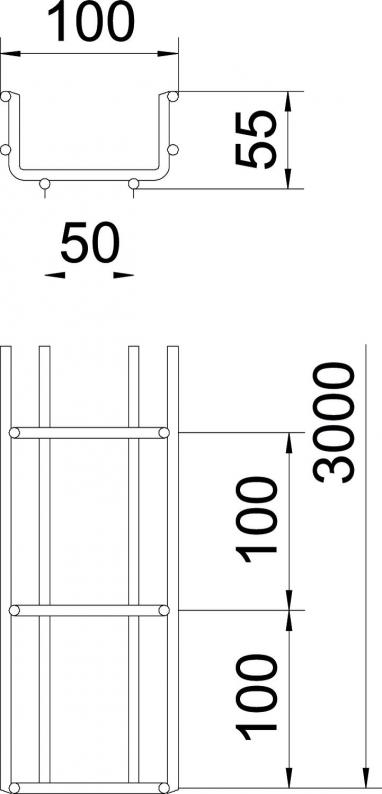

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 55 mm |
| Dimension B | 100 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Usable cross-section | 40 cm² |
| Usable cross-section | 4000 mm² |
| Profile shape | U-shaped |
| Tel çapı | 6 mm |
| Boyut | 55x100x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,0m | 2 kN/m |
|---|---|
| Destek aralığı 1,5m | 1,15 kN/m |
| Destek aralığı 2,0m | 0,75 kN/m |
| Destek aralığı 2,5m | 0,5 kN/m |
| Destek aralığı 3,0m | 0,4 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 8,521 kg CO2e / 1 Meter |
|---|
