Height extension kit for underfloor box UDSR4

Height extension kit for underfloor box UDSR4

Type SKE R215
|
Item no. 7404388
|
EAN 4012195759614
Show all variants
Item no. / Type
7404388 / SKE R215
Diameter
215 mm

Smallest selling unit: 1 piece

piece

Description

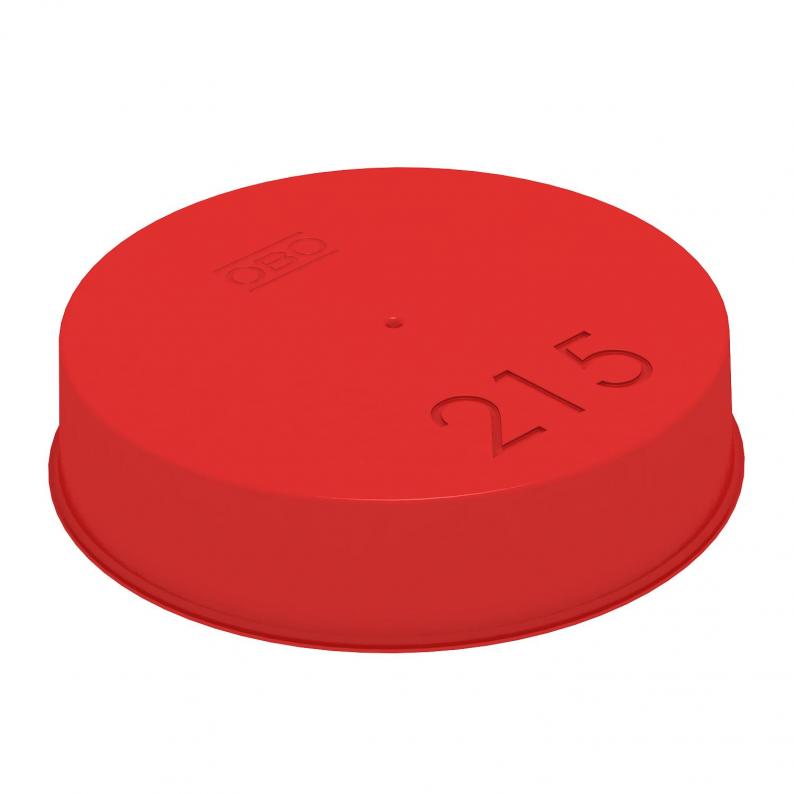

Height extension kit for screed protection cover of underfloor box UDS or a screed protection cover for installation opening of nominal size R4. Height extension of + 40 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

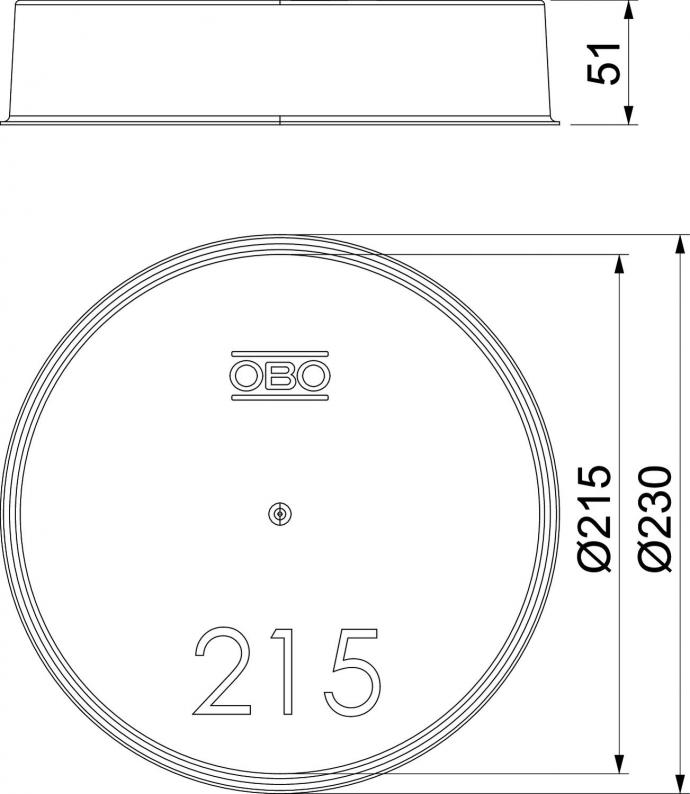

Dimensions

Height50 mm
Dimension d Ø215 mm

Technical data

Diameter215 mm
Nominal size for device installation unitsR4
DimensionØ230 H=50
MaterialPolystyrene
Colourtraffic red; RAL 3020

Environmental Data

0,5695 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5695 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

SKE R215
Item no.
7404388
Diameter
215
