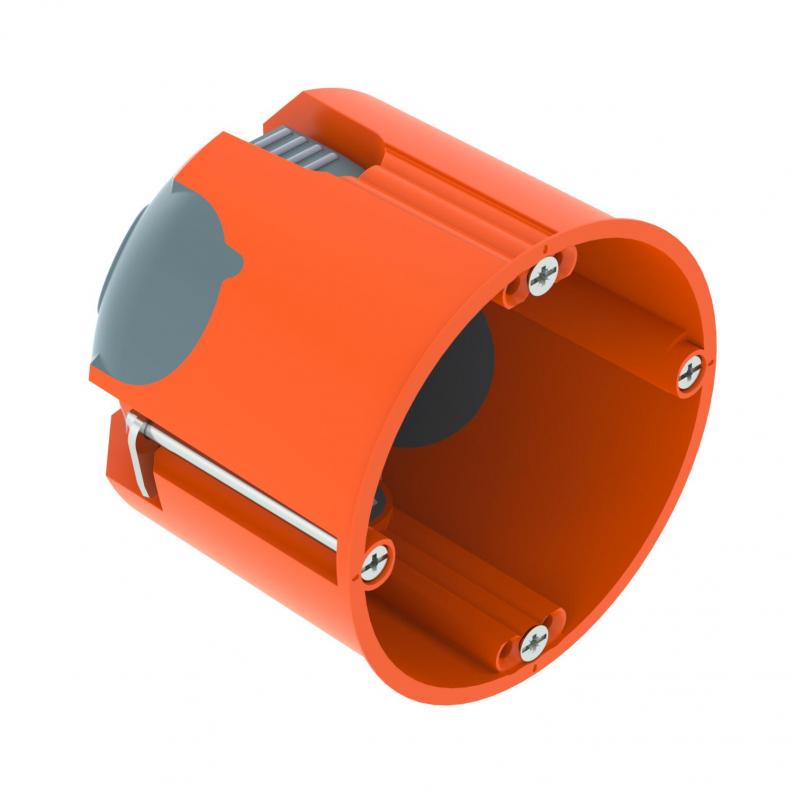

HW Cavity wall device connection box 61, airtight
Type HG 61-L
|Item no. 2003808
|EAN 4012196715947
Item no. / Type
2003808 / HG 61-L
Height
61 mm
Freze deliği çapı
68 mm
Diameter
68 mm
Giriş sayısı
10
for pipe diameter
20/25 mm
Smallest selling unit: 25 piece
25piece
piece
Description
Cavity wall device box with airtight membrane entries for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.
• 2 x 3 screw domes
• Device screws, clamping straps
• 2 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Airtight connection with other accessory sockets via connector, type ZH 11-V
• Sound insulation tested up to 70 dB according to ISO 10140-2
Delivery accessories: 10 x connectors, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
• 2 x 3 screw domes
• Device screws, clamping straps
• 2 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Airtight connection with other accessory sockets via connector, type ZH 11-V
• Sound insulation tested up to 70 dB according to ISO 10140-2
Delivery accessories: 10 x connectors, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
Technical data
Dimensions
| Height | 61 mm |
|---|
Technical data
| Giriş şekli | NYM cables, data cables and corrugated pipes |
|---|---|
| Darbeye dayanıklı | hayır |
| Eleman sayısı | 1 |
| Freze deliği çapı | 68 mm |
| Uygun olduğu plaka kalınlığı min. | 5 mm |
| Uygun olduğu plaka kalınlığı maks | 40 mm |
| Diameter | 68 mm |
| Halojen İçermez | evet |
| Giriş sayısı | 10 |
| Cihazların tespitlenmesi | Screws , |
| Koruma sınıfı | IP30 |
| Type of housing penetration | Insertion membrane |
| for pipe diameter | 20/25 mm |
| With bolts | evet |
| Airtight | evet |
| Support | Connector |
| Anma kesiti min. | 1,5 mm² |
| Anma kesiti maks. | 2,5 mm² |
| Shape | yuvarlak |
| Cover | Yok |
| Cover fastening | Screws , |
| Aleve dayanıklı | Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 2 |
| Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² | 2 |
| Cable entries 3 x 1.5 mm² | 4 |
| Boyut | Ø68mm, H61mm |
| Material | Polypropylene / Thermoplastic elastomer |
| Colour | orange / grey |
| Rated voltage | 400 V |
| Sound insulation | tested up to 70 dB according to ISO 10140-2 |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0889 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
