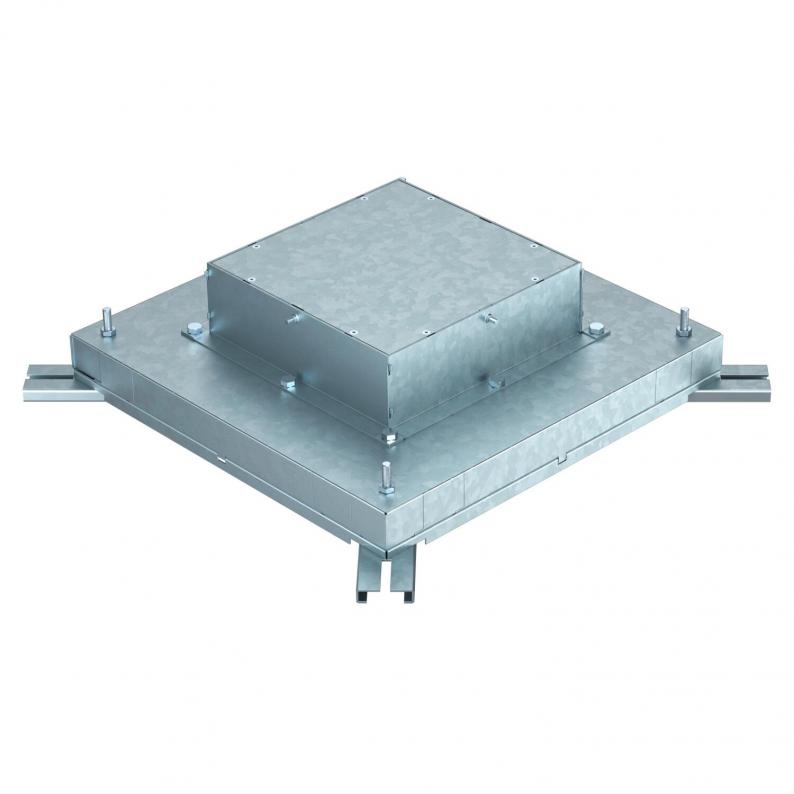

In-concrete box for installation units of nominal size 9
Type IBD 35048 9
|Item no. 7399852
|EAN 4012196331741
Item no. / Type
7399852 / IBD 35048 9
Height
145 mm
Nominal size for device installation units
9
Duct height, min.
48 mm
Smallest selling unit: 1 piece
1piece
piece
Description
In-concrete box for duct height 48 mm, prepared for duct widths 250 and 350 mm.
With four adjustable placements for height-adjustment units.
The integrated lined body can be adjusted to a maximum of 65 mm for compensating screed work.
With four adjustable placements for height-adjustment units.
The integrated lined body can be adjusted to a maximum of 65 mm for compensating screed work.
Technical data
Dimensions
| Height | 145 mm |
|---|---|
| Dimension h | 145 mm |
Technical data
| Suitable for screed-covered underfloor ducts | yes |
|---|---|
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, min. | 250 mm |
| Trunking width, max. | 350 mm |
| Installation opening for on-floor tank | no |
| Number of installable devices | 12 |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | yes |
| Suitable for underfloor ducts | yes |
| Installation opening for flush-mount unit | Square |
| For pipe connection | no |
| Nominal size for device installation units | 9 |
| Duct height, min. | 48 mm |
| Dimension | 440x440x145 |
| Surface | Strip galvanised |
| Material | Steel |
Environmental Data
30,5272 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 30,5272 kg CO2e / 1 Piece |
|---|
