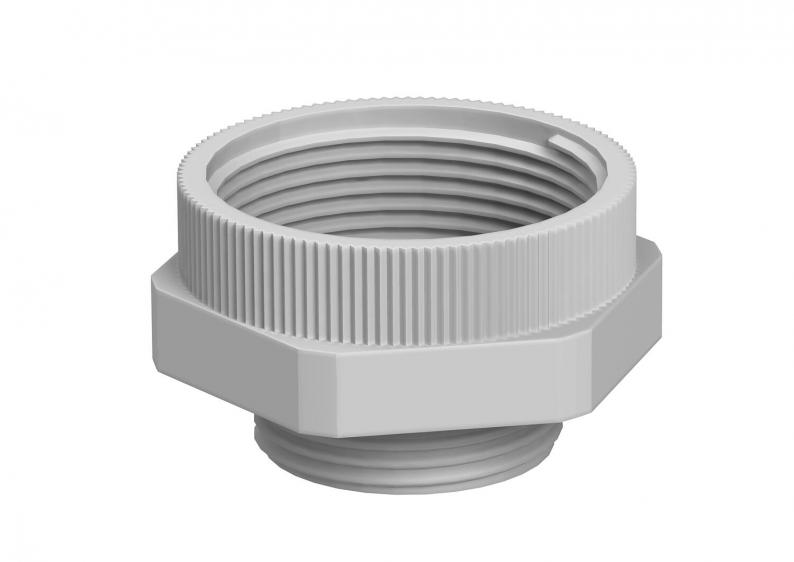

Intermediate expansion connector, metric thread

Intermediate expansion connector, metric thread

Type 107 E M 12-16 PA
|
Item no. 2031450
|
EAN 4012195371878
Show all variants
Item no. / Type
Thread dimension, metric, internal
Thread dimension, metric, external

Smallest selling unit: 50 piece

piece

Description

Uzatma ara destek parçası, metrik içten ve dıştan dişli.
  • Halojen içermez; Klor, flüor ve brom içermez
  • Metrik vida dişi
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

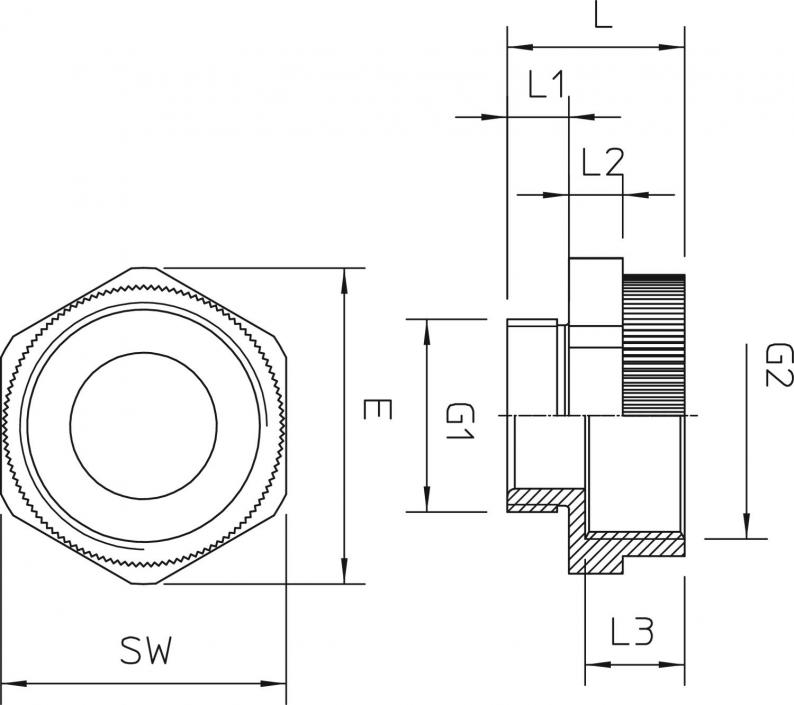

Dimensions

Dimension L20,5 mm
Dimension L18 mm
Dimension L25 mm
Dimension L310,5 mm
Dimension E22 mm
Dimension D7 mm

Technical data

Patlamaya karşı korumalıhayır
Thread type: Internal threadMetric
Thread type: External threadMetric
Thread dimension, metric, internal16
Thread dimension, metric, external12
Nickel-platedhayır
WAF20
BoyutM12-M16
MaterialPolyamide
ColourLight grey; RAL 7035

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya0,0153 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Thread dimension, metric, internal
Thread dimension, metric, external
107 E M 12-16 PA
Item no.
2031450
Thread dimension, metric, internal
16
Thread dimension, metric, external
12
107 E M 16-20 PA
Item no.
2031451
Thread dimension, metric, internal
20
Thread dimension, metric, external
16
107 E M 20-25 PA
Item no.
2031452
Thread dimension, metric, internal
25
Thread dimension, metric, external
20
107 E M 25-32 PA
Item no.
2031453
Thread dimension, metric, internal
25
Thread dimension, metric, external
25
107 E M 32-40 PA
Item no.
2031454
Thread dimension, metric, internal
40
Thread dimension, metric, external
32
