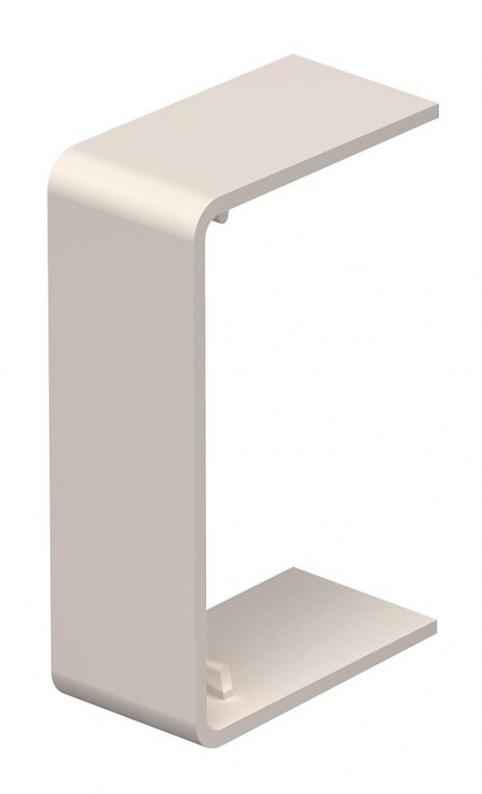

Joint cover, for trunking, type WDK 25040

Joint cover, for trunking, type WDK 25040

Type WDK HS25040CW
|
Item no. 6152082
|
EAN 4012196507375
Show all variants
Item no. / Type
Colour

Smallest selling unit: 10 piece

piece

Description

Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length14 mm
Width42 mm
Height25 mm

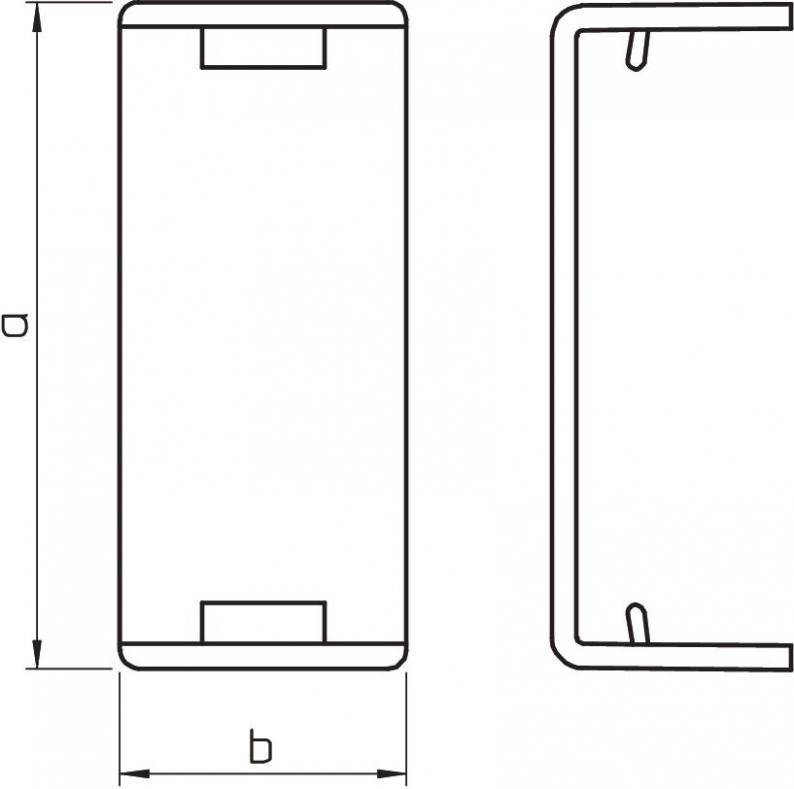

Dimension H40 mm
Dimension b14 mm
Dimension a42 mm

Technical data

for duct dimension25x40
Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
ShapeSymmetrical
Version forTrunking cut cover
Fastening typeLockable
Cover width14 mm
Trunking depth25 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension25x40mm
MaterialPolyvinylchloride
ColourCream; RAL 9001

Environmental Data

0,0233 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0233 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HS25040CW
Item no.
6152082
Colour
Cream; RAL 9001
WDK HS25040GR
Item no.
6158889
Colour
Stone grey; RAL 7030
WDK HS25040RW
Item no.
6193560
Colour
Pure white; RAL 9010
