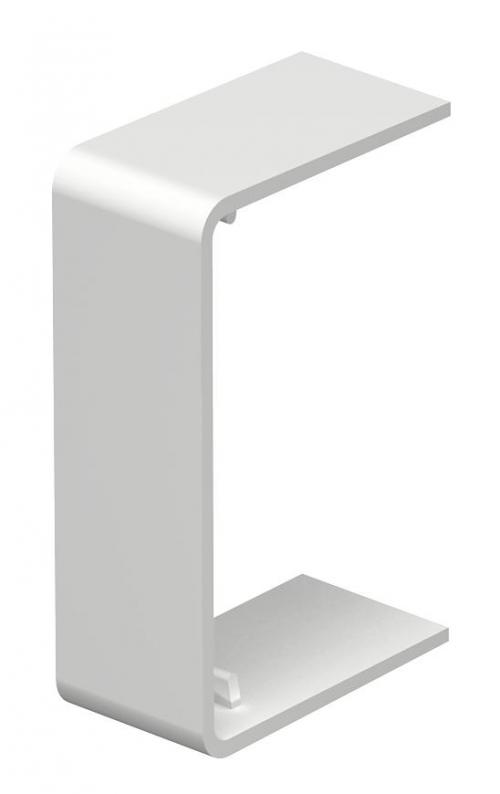

Joint cover, for trunking, type WDK 40110
Type WDK HS40110RW
|Item no. 6193586
|EAN 4012195461821
Item no. / Type
Colour
Smallest selling unit: 20 piece
20piece
piece
Description
Joint cover for hiding cut edges and for smooth connection of trunking segments.
Technical data

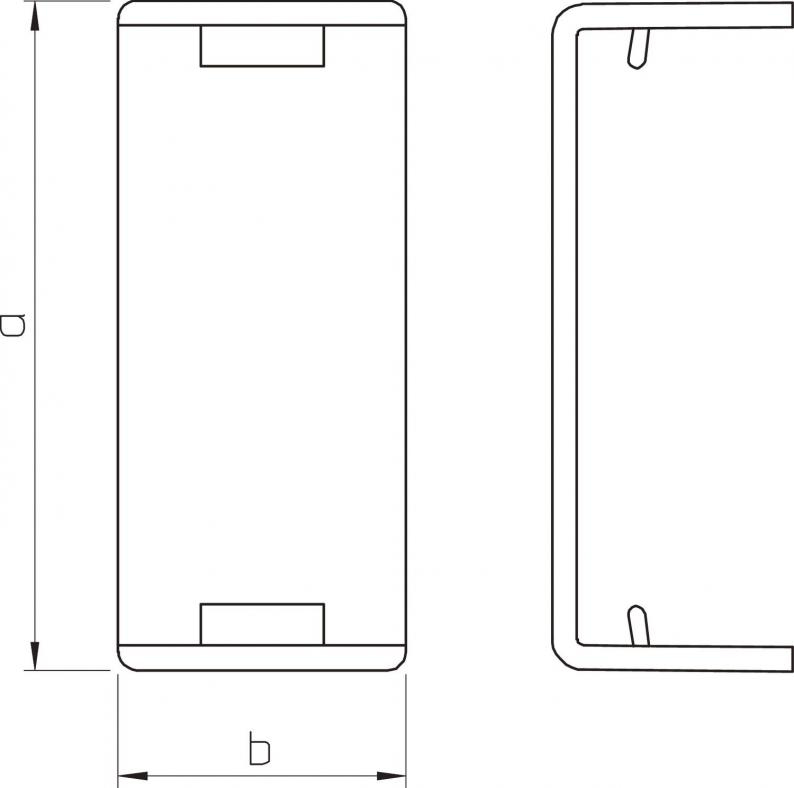

Dimensions
| Length | 18 mm |
|---|---|
| Width | 110 mm |
| Height | 39 mm |
| Dimension b | 39 mm |
| Dimension a | 110 mm |
Technical data
| Halojen İçermez | no |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK04 |
| Shape | Symmetrical |
| Version for | Trunking cut cover |
| Fastening type | Lockable |
| Kanal genişliği | 40 mm |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 42x113x18mm |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,036 kg CO2e / 1 Piece |
|---|
