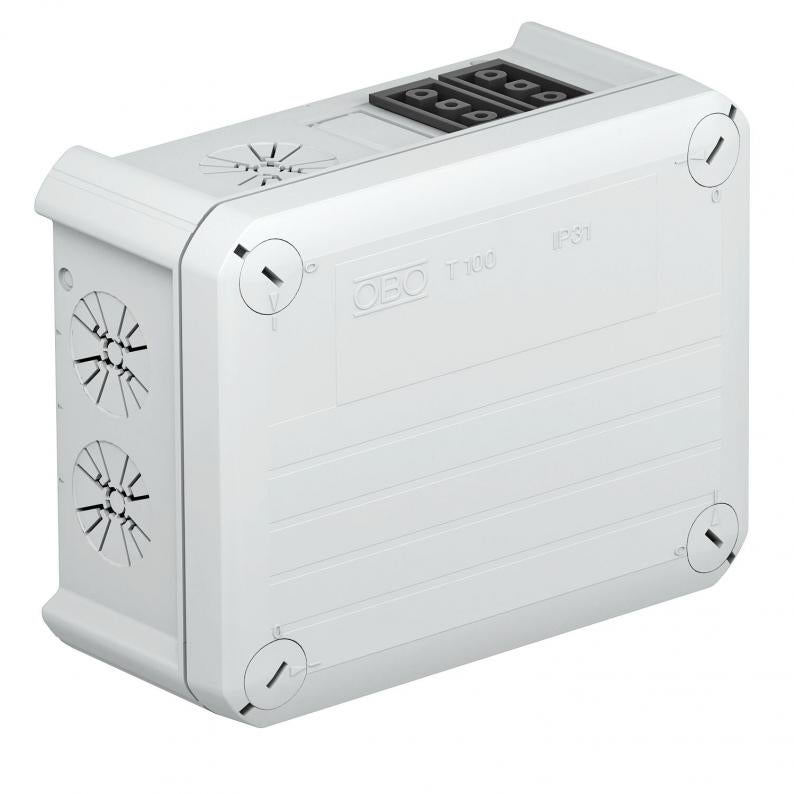

Junction box T100, with Wieland socket 1w3p+2s3p

Junction box T100, with Wieland socket 1w3p+2s3p

Type T 100 WB 1W3 2S3
|
Item no. 2007817
|
EAN 4012195615866
Show all variants
Item no. / Type
Clear internal dimensions

Smallest selling unit: 1 piece

piece

Description

Junction box with Wieland sockets, 1w3p + 1s3p, for the connection of cables indoors and in protected outdoor areas. Rectangular design with knock-out entries to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C.
Clear internal dimensions: 136x102x57 mm
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 20
  • Nominal voltage 500 V
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length150 mm
Width116 mm
Height67 mm
Clear internal dimensions136x102x57 mm

Technical data

Type of entryStrain relief entries for direct penetrations for cable diameters of 7−21 mm
Halogen-freeyes
No. of entries4
Entry from rearyes
Transparent lidno
Protection ratingIP20
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.2,5 mm²
ShapeRectangular
EquipmentMiscellaneous
CoverNot transparent
Cover fasteningScrewed
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension150x116x67
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,6146 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,6146 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (2)
Tender specifications (1)

Variants

T 100 WB 1W3 1S3
Item no.
2007815
Clear internal dimensions
136x102x57
No. of entries
4
Protection rating
IP20
Colour
Light grey; RAL 7035
T 100 WB 1W3 2S3
Item no.
2007817
Clear internal dimensions
136x102x57
No. of entries
4
Protection rating
IP20
Colour
Light grey; RAL 7035
T 100 WB 2W3 2S3
Item no.
2007819
Clear internal dimensions
136x102x57
No. of entries
4
Protection rating
IP20
Colour
Light grey; RAL 7035
T 100 WB 2s4
Item no.
2007848
Clear internal dimensions
136x102x57
No. of entries
4
Protection rating
IP20
Colour
Light grey; RAL 7035
