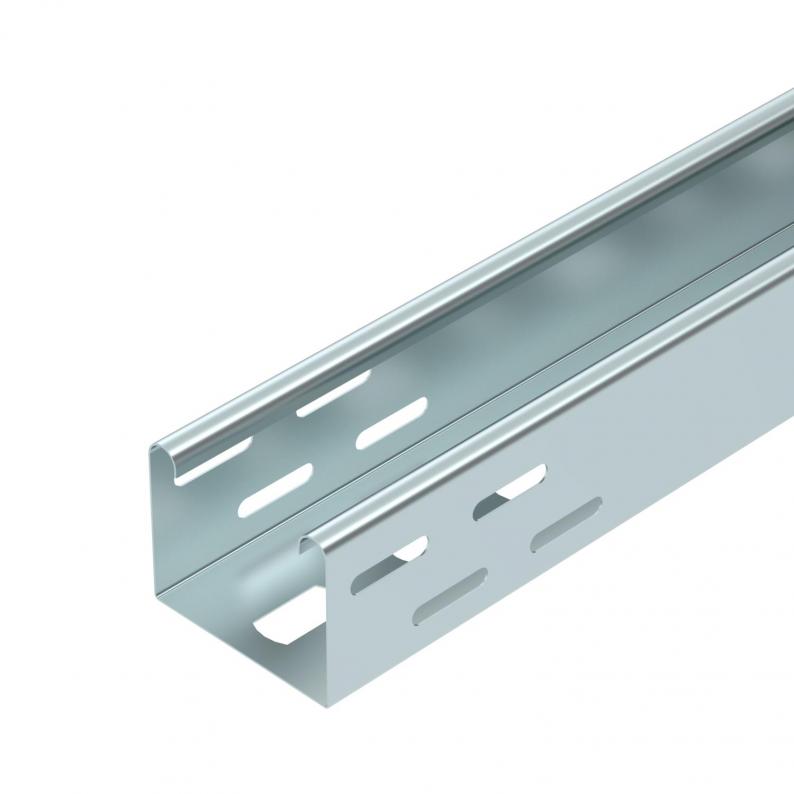

Luminaire support tray FS
Type LTR 3000 FS
|Item no. 6055810
|EAN 4012196943876
Item no. / Type
Length
Width
Plate thickness
Smallest selling unit: 3 m
3m
m
Description
Luminaire support tray with perforated base for fastening luminaires and cable penetration.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
The white version has a visible surface coating.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 75 mm |
| Height | 60 mm |
Technical data
| Yan delik | yes |
|---|---|
| Connector version | Without connectors |
| Usable cross-section | 42 cm² |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 0,75 mm |
| Tabanda montaj deliği | yes |
| Boyut | 60x75x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,5m | 0,8 kN/m |
|---|---|
| Destek aralığı 2,0m | 0,55 kN/m |
| Destek aralığı 2,5m | 0,35 kN/m |
| Destek aralığı 3,0m | 0,25 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 2,7973 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
MAH LTR FS
6358810
Smallest selling unit: 25 piece
25piece
piece
Item no. 6358810
Centre suspension for luminaire support tray, FSType
MAH LTR FS
Smallest selling unit: 25 piece
25piece
piece
