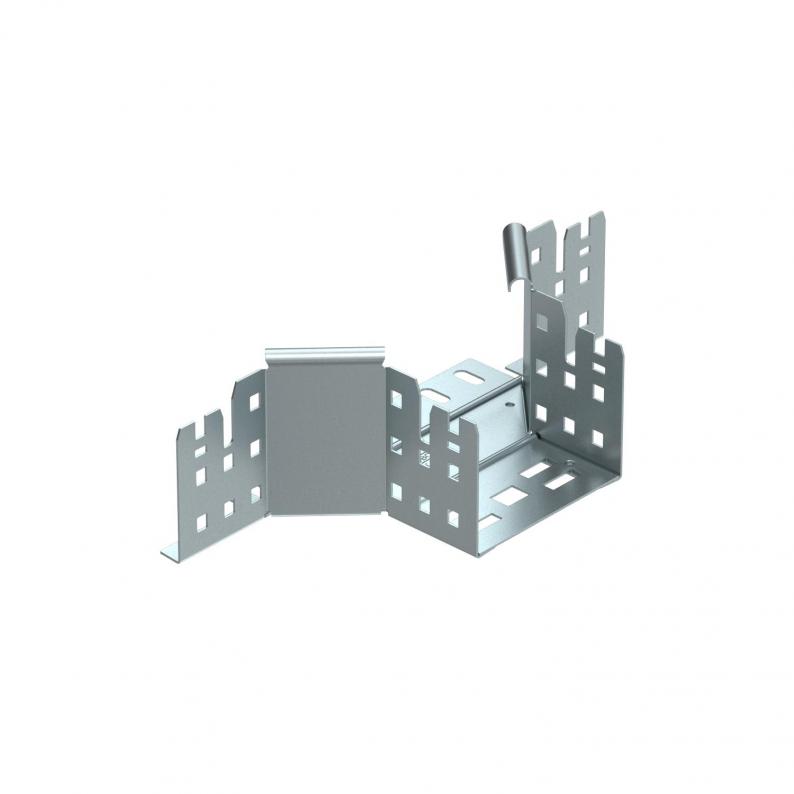

Magic add-on tee 85 FS

Magic add-on tee 85 FS

Type RAAM 810 FS
|
Item no. 6041570
|
EAN 4012195880851
Show all variants
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Add-on tee with quick connector system. For all cable tray types of 85 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
  • BET-tested to DIN EN 61537

Technical data

Dimensions

Width100 mm
Height85 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
NATO hole patternno
Material thickness, floor plate1,25 mm
Bend (angle)90°
Change of directionHorizontal
ROHS-conformantyes
Rail thickness1,25 mm
Dimension85x100
SurfaceStrip galvanised
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RAAM 810 FS
Item no.
6041570
Width
100
RAAM 820 FS
Item no.
6041572
Width
200
RAAM 840 FS
Item no.
6041576
Width
400
RAAM 860 FS
Item no.
6041580
Width
600
