Magic add-on tee 85 FT
Type RAAM 810 FT
|Item no. 6041590
|EAN 4012195880912
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

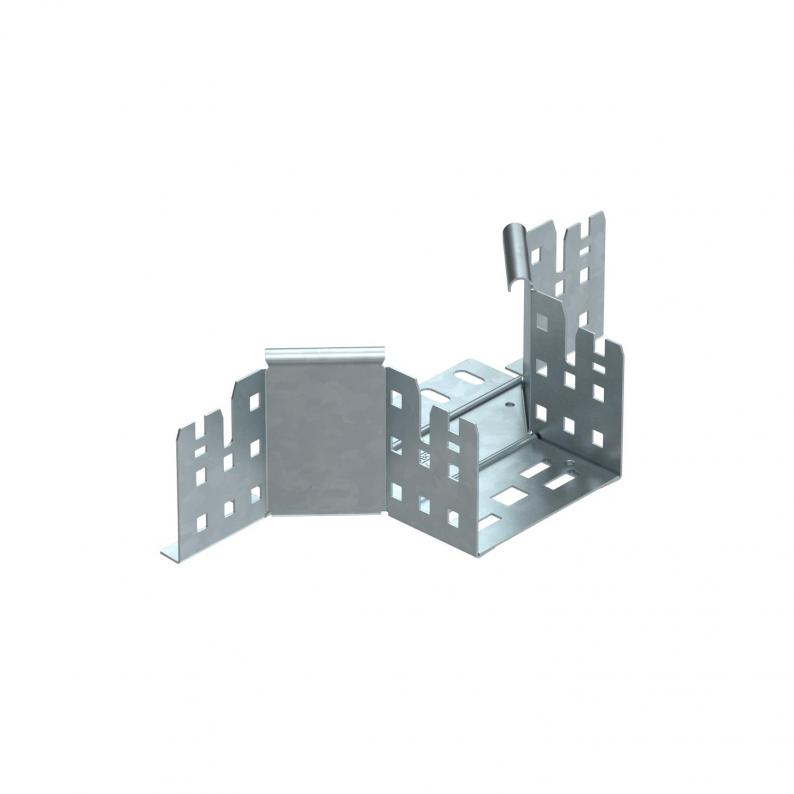

Add-on tee with quick connector system. For all cable tray types of 85 mm side height.
Technical data

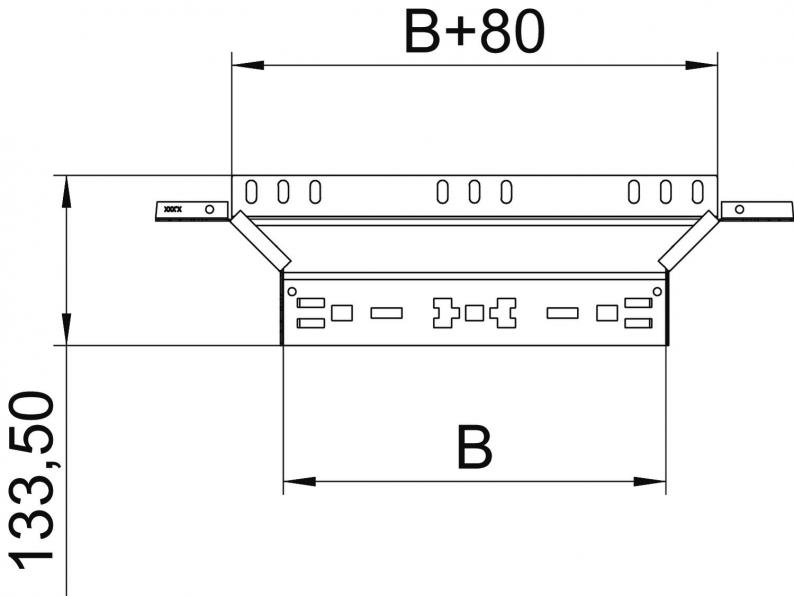

Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 85x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Item no.
RAAM 810 FT
100
6041590
RAAM 840 FT
400
6041596
RAAM 850 FT
500
6041598
Width
RAAM 810 FT
Item no.
6041590
Width
100
RAAM 840 FT
Item no.
6041596
Width
400
RAAM 850 FT
Item no.
6041598
Width
500
