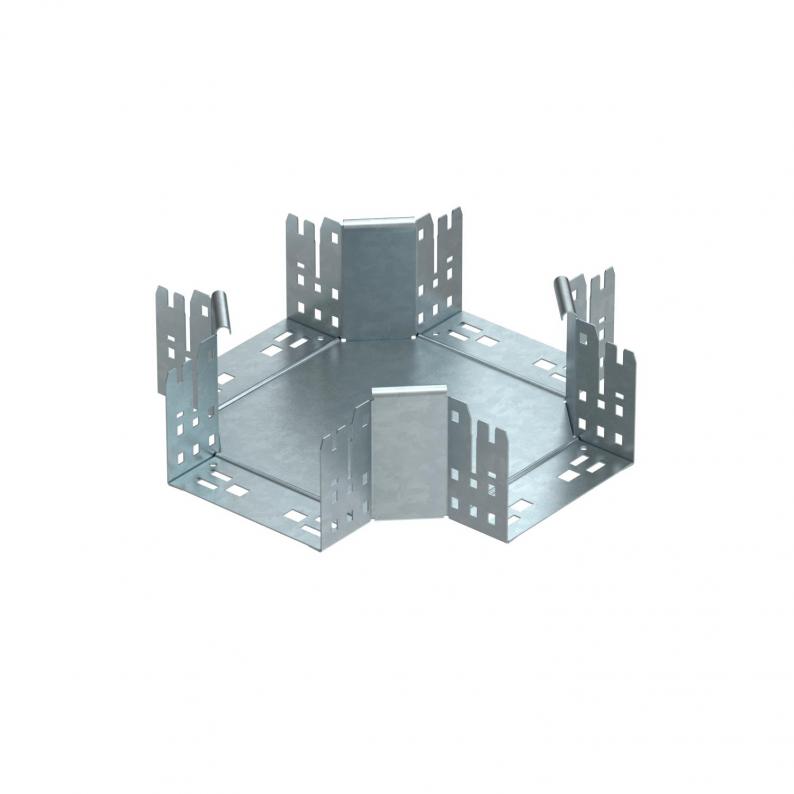

Magic cross-over 110 FT
Type RKM 115 FT
|Item no. 7027183
|EAN 4012195928164
Item no. / Type
7027183 / RKM 115 FT
Width
110 mm
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cross-over with quick connector system. For all cable tray types of 110 mm side height.
Technical data
Dimensions
| Width | 110 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 110x150 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
