Magic DD fitting connector
Type FVM 810 DD
|Item no. 6065810
|EAN 4012196054282
Item no. / Type
Width
Height
Dimension B
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

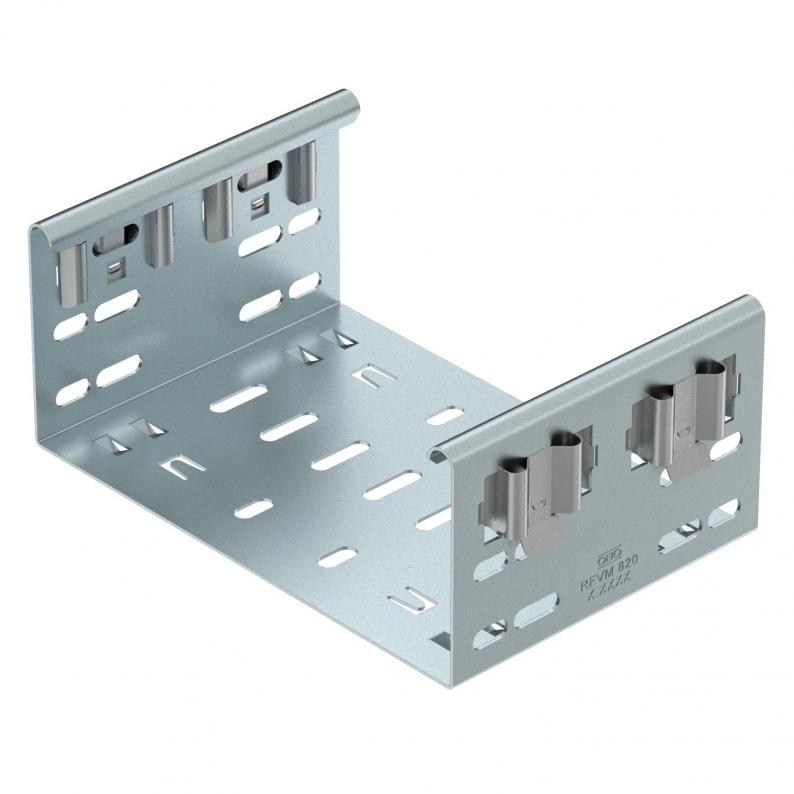

Magic straight connector for direct and screwless joining of Magic fittings with a side height of 85 mm.
The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.
The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.
The fitting connector is compatible with cable tray types MKSM, MKSMU, SKSM and SKSMU.
Technical data

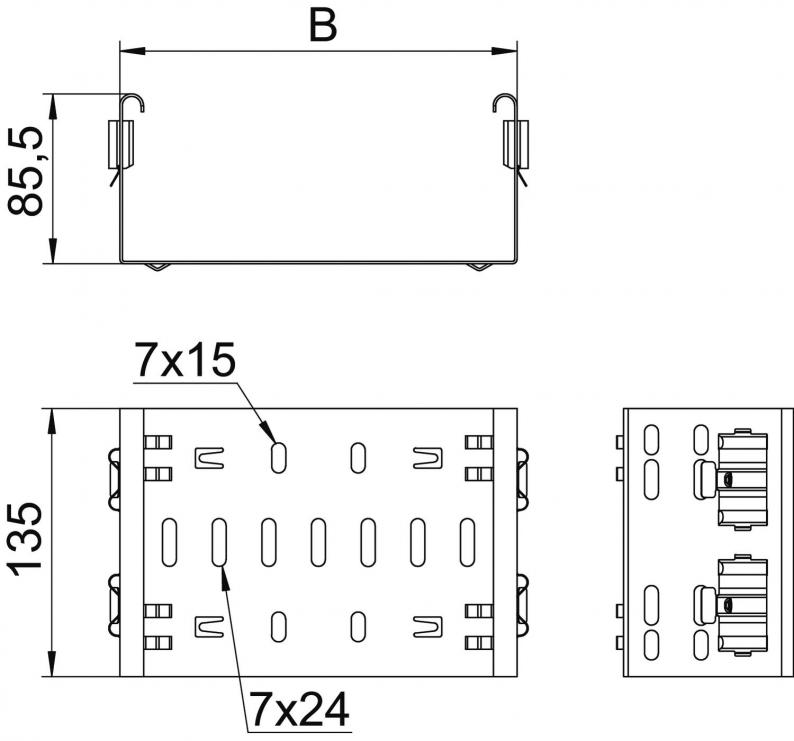

Dimensions
| Length | 135 mm |
|---|---|
| Width | 100 mm |
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | no |
| Kablo kanalı için uygun | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 85 mm |
| Version for | Straight connector |
| Connection type | Screwless connector |
| Boyut | 85x100 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
