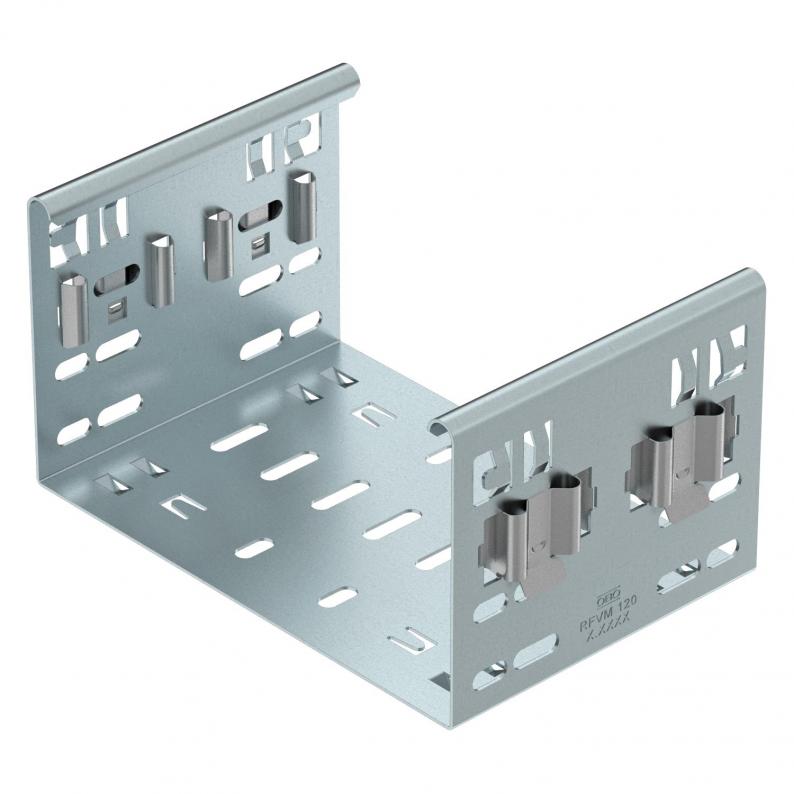

Magic straight connector DD

Magic straight connector DD

Type FVM 120 DD
|
Item no. 6065914
|
EAN 4012196054879
Show all variants
Item no. / Type
Width
Height
Dimension B

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

Magic straight connector for direct and screwless joining of Magic fittings with a side height of 110 mm.

The straight connector is equipped with four brackets and can also be used for the direct connection with a cut cable tray with only two brackets mounted to one side. To join a cut cable tray with a fitting, an additional Magic straight connector set is needed.

The fitting connector is compatible with cable tray types MKSM, MKSMU, SKSM and SKSMU.

  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity

Technical data

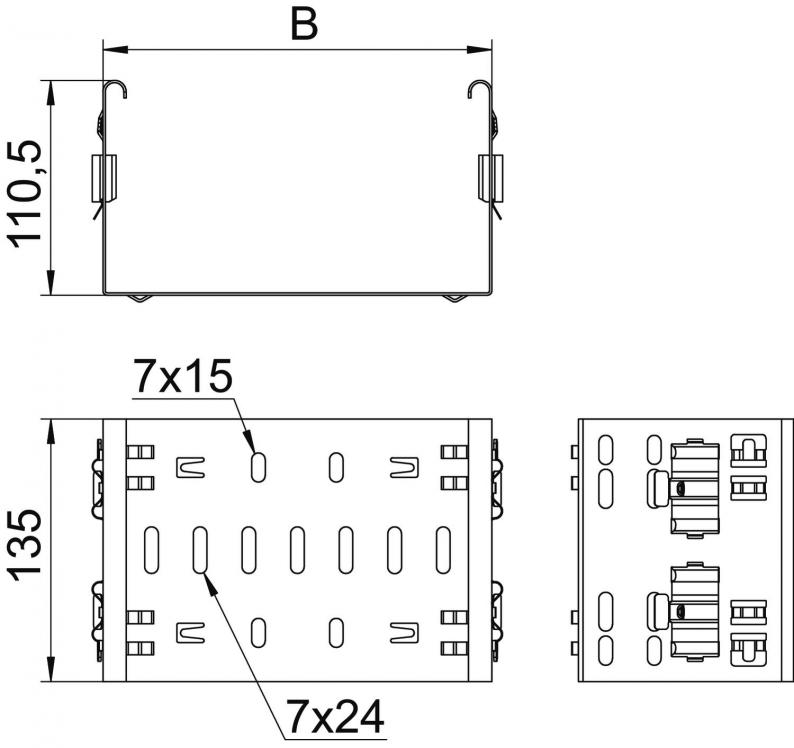

Dimensions

Length135 mm
Width200 mm
Height110 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunno
Kablo kanalı için uygunyes
Adjustable connector, horizontalno
Articulated connector, verticalno
Suitable for cable tray system height110 mm
Version forStraight connector
Connection typeScrewless connector
Boyut110x200
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Dimension B
FVM 120 DD
Item no.
6065914
Width
200
Height
110
Dimension B
200
FVM 130 DD
Item no.
6065916
Width
300
Height
110
Dimension B
300
FVM 150 DD
Item no.
6065920
Width
500
Height
110
Dimension B
500
FVM 160 DD
Item no.
6065922
Width
600
Height
110
Dimension B
600
